Mlhový světlomet for BMW 5 Series E60 LCI 525xi (2009)

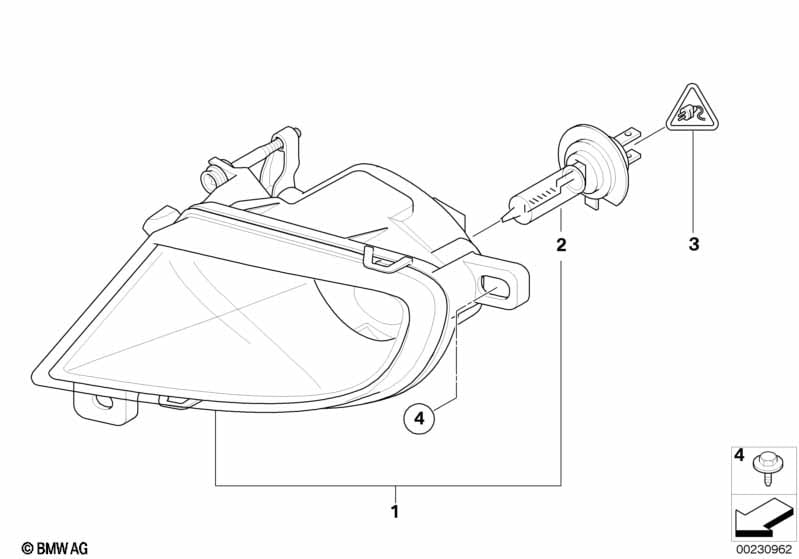

This Mlhový světlomet technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mlhový světlomet levý | 1 | 63177177711 | $125.48 | Shop at ECS Tuning | |||||
| 01 | Mlhový světlomet pravý | 1 | 63177177712 | $125.48 | Shop at ECS Tuning | |||||
| 02 | Žárovka | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 03 | Těleso zdířky černé | 2 POL. | 2 | 61136907388 | $1.82 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Plochý pružný kontakt JPT ELA s kabelem | 0,5-1,0 MM² AG | 2 | 61130070584 | Shop at ECS Tuning | |||||
| 03 | Opravná sada kryt pouzdra | 2 POL. | 2 | 61132360041 | Shop at ECS Tuning | |||||
| 04 | Šestihranný šroub pro umělé hmoty | 4 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 525xi Mlhový světlomet?
- This technical diagram illustrates the Mlhový světlomet within the Osvětlovací souprava group for the 5 Series E60 LCI 525xi produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Mlhový světlomet levý (Part #63177177711).
- Which models use the hardware listed in this Mlhový světlomet?
- The hardware and components featured in the Mlhový světlomet are specific to the 5 Series E60 LCI 525xi produced during 2009. These technical specifications ensure that parts like the Mlhový světlomet levý (63177177711) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mlhový světlomet assembly?
- Each item in the Mlhový světlomet corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 525xi, you can identify the Mlhový světlomet levý by locating its position on the schematic, which then links to the official BMW part number 63177177711 for the Osvětlovací souprava section.
