Zadní svítilna for BMW MINI Clubman R55 LCI Cooper (2010)

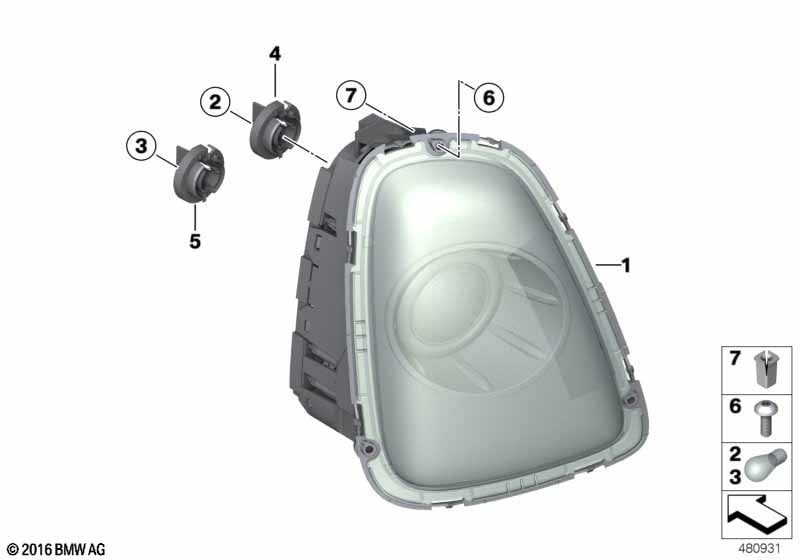

This Zadní svítilna technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní svítilna boční stěna levá | 1 | 08/2010 | 63217255915 | Shop at ECS Tuning | |||||
| 01 | Zadní svítilna boční stěna pravá | 1 | 08/2010 | 63217255916 | Shop at ECS Tuning | |||||
| Pro vozidla s Směrová světla bílá |
S785A=Ano |
|||||||||
| 01 | Zadní svítilna boční stěna levá bílá | 1 | 08/2010 | 63217275119 | Shop at ECS Tuning | |||||
| 01 | Zadní svítilna boční stěna pravá bílá | 1 | 08/2010 | 63217275120 | Shop at ECS Tuning | |||||
| 02 | Žárovka Longlife | P21W/12V/21W | 4 | 08/2010 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| Pro vozidla s Směrová světla bílá |
S785A=Ne |
|||||||||
| 02 | Žárovka Longlife | P21W/12V/21W | 6 | 08/2010 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| Pro vozidla s Směrová světla bílá |
S785A=Ano |
|||||||||
| 03 | Žárovka Longlife žlutá | PY21W 12V 21W | 2 | 08/2010 | 63217176025 | $5.58 | Shop at ECS Tuning | |||
| 04 | Objímka žárovky | P21W | 4 | 08/2010 | 63212756177 | $6.60 | Shop at ECS Tuning | |||
| Pro vozidla s Směrová světla bílá |
S785A=Ne |
|||||||||
| 04 | Objímka žárovky | P21W | 6 | 08/2010 | 63212756177 | $6.60 | Shop at ECS Tuning | |||
| Pro vozidla s Směrová světla bílá |
S785A=Ano |
|||||||||
| 05 | Objímka žárovky žlutá | 2 | 08/2010 | 63212756176 | $6.60 | Shop at ECS Tuning | ||||
| 06 | Šroub s čočkovou hlavou s nákružkem | 2 | 08/2010 | 07142756873 | Shop at ECS Tuning | |||||
| 07 | Rozpěrná matice | 2 | 08/2010 | 63212756354 | $0.58 | Shop at ECS Tuning | ||||
