Zadní svítilna for BMW MINI Paceman R61 Cooper

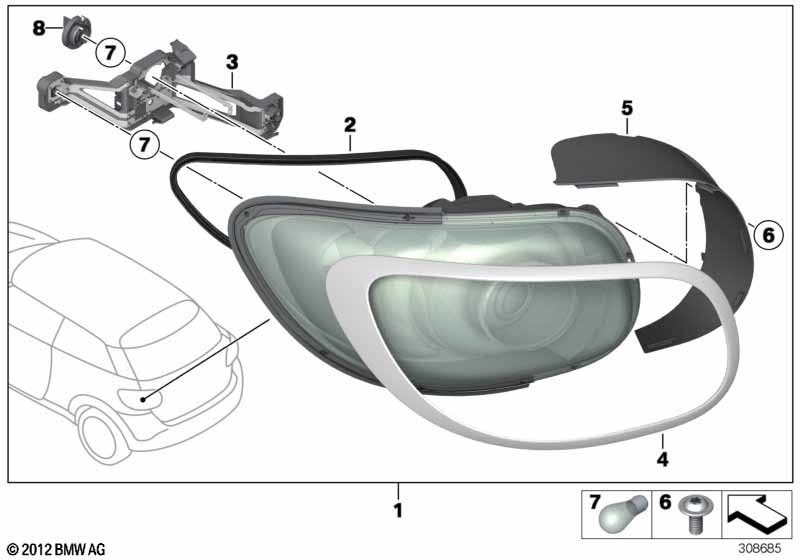

This Zadní svítilna technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní svítilna levá | 1 | 63219808869 | Shop at ECS Tuning | ||||||
| 01 | Zadní svítilna pravá | 1 | 63219808870 | Shop at ECS Tuning | ||||||
| Pro vozidla s Piano black exterieur |
S3L2A=Ano |
|||||||||
| 01 | Zadní svítilna levá | 1 | 63219812873 | Shop at ECS Tuning | ||||||
| 01 | Zadní svítilna pravá | 1 | 63219812874 | Shop at ECS Tuning | ||||||
| 02 | Těsnění | 2 | 63219811160 | Shop at ECS Tuning | ||||||
| 03 | Držák žárovky levý | 1 | 63219811175 | Shop at ECS Tuning | ||||||
| 03 | Držák žárovky pravý | 1 | 63219811176 | Shop at ECS Tuning | ||||||
| Pro vozidla s Piano black exterieur |
S3L2A=Ano |
|||||||||
| 04 | Clona zadní svítilna levá | SCHWARZ | 1 | 63129812875 | Shop at ECS Tuning | |||||
| 04 | Clona zadní svítilna pravá | SCHWARZ | 1 | 63129812876 | Shop at ECS Tuning | |||||
| Pro vozidla s Piano black exterieur |
S3L2A=Ne |
|||||||||
| 04 | Chromovaná clona zadní svítilna levá | 1 | 63219811173 | Shop at ECS Tuning | ||||||
| 04 | Chromovaná clona zadní svítilna pravá | 1 | 63219811174 | Shop at ECS Tuning | ||||||
| 05 | Lišta vodní drážka levá | 1 | 63219811177 | Shop at ECS Tuning | ||||||
| 05 | Lišta vodní drážka pravá | 1 | 63219811178 | Shop at ECS Tuning | ||||||
| 06 | Šroub s plochou hlavou | M6X16 | 4 | 07119907884 | Shop at ECS Tuning | |||||
| 07 | Žárovka Longlife | P21W/12V/21W | 4 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Objímka žárovky | P21W | 4 | 63212756177 | $6.60 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Zadní svítilna?
- This technical diagram illustrates the Zadní svítilna within the Osvětlovací souprava group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Zadní svítilna levá (Part #63219808869).
- Which models use the hardware listed in this Zadní svítilna?
- The hardware and components featured in the Zadní svítilna are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Zadní svítilna levá (63219808869) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zadní svítilna assembly?
- Each item in the Zadní svítilna corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Zadní svítilna levá by locating its position on the schematic, which then links to the official BMW part number 63219808869 for the Osvětlovací souprava section.
