Jednotlivé díly světlomet halogen for BMW MINI Countryman F60 One

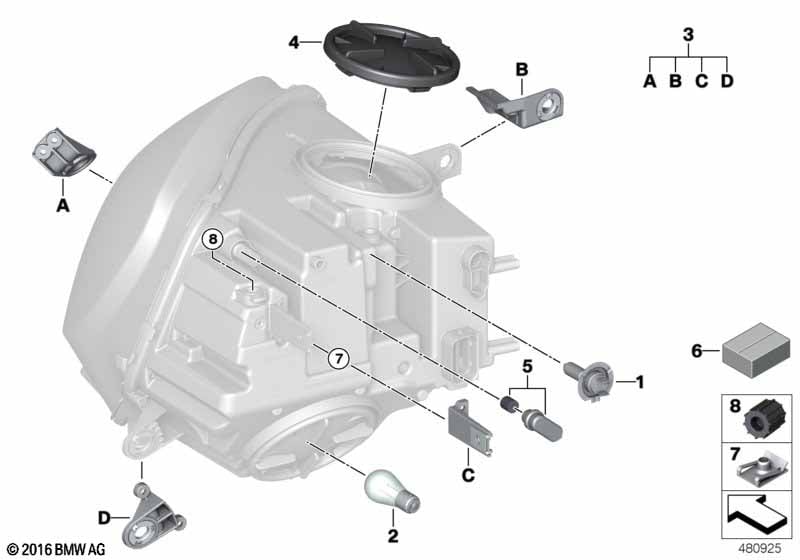

This Jednotlivé díly světlomet halogen technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Žárovka | H7/55W | 4 | 63217160780 | $18.86 | Shop at ECS Tuning | ||||
| 01 | Žárovka Longlife | 12V 55W H7 | 4 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 02 | Žárovka, žlutá | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 03 | Sada držák světlomet | 1 | 63117441309 | Shop at ECS Tuning | ||||||
| 04 | Odnímatelný kryt | 2 | 63117379846 | Shop at ECS Tuning | ||||||
| 05 | Sada průchodky | 2 | 63117441312 | Shop at ECS Tuning | ||||||
| 06 | Sada šrouby | 1 | 63117387835 | Shop at ECS Tuning | ||||||
| 07 | C-Svorka matice | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 One Jednotlivé díly světlomet halogen?
- This technical diagram illustrates the Jednotlivé díly světlomet halogen within the Osvětlovací souprava group for the MINI Countryman F60 One. It provides a detailed exploded view of the components, identifying key parts such as the Žárovka (Part #63217160780).
- Which models use the hardware listed in this Jednotlivé díly světlomet halogen?
- The hardware and components featured in the Jednotlivé díly světlomet halogen are specific to the MINI Countryman F60 One. These technical specifications ensure that parts like the Žárovka (63217160780) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Jednotlivé díly světlomet halogen assembly?
- Each item in the Jednotlivé díly světlomet halogen corresponds to the numbered list below the illustration. For the MINI Countryman F60 One, you can identify the Žárovka by locating its position on the schematic, which then links to the official BMW part number 63217160780 for the Osvětlovací souprava section.
