Světlovod interiér for BMW MINI F66 JCW

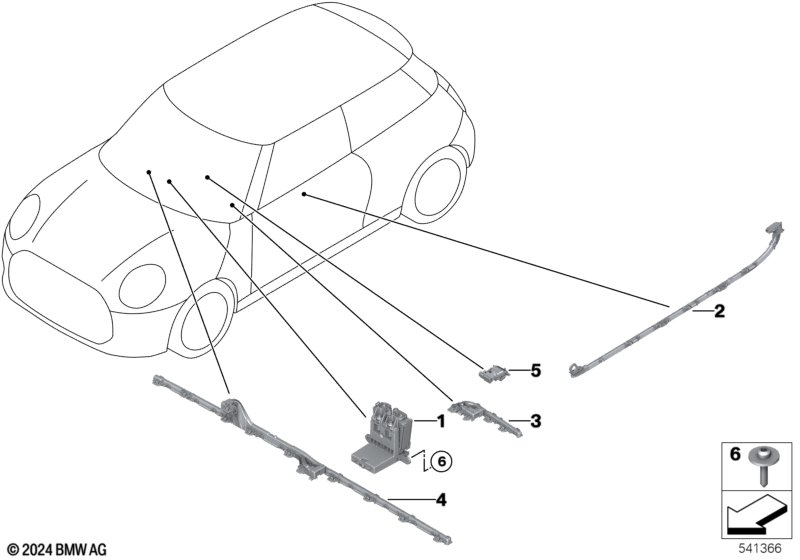

This Světlovod interiér technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s REŽIMY MINI EXPERIENCE |
S4VFA=Ano |
|||||||||
| 01 | Projektor přístrojové desky | LL | 1 | 63315B4A4B5 | Shop at ECS Tuning | |||||
| 02 | Ambientní dekorační osvětlení dveří | VO.LI | 1 | 63315A2E8E9 | NoS | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Axiální pojistka | 5,75MM | 1 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| -- | Čočkový šroub s podložkou | DELTA PT4X12 | 1 | 07149200941 | Shop at ECS Tuning | |||||
| -- | Pružná matice | 1 | 07149459832 | NoS | Shop at ECS Tuning | |||||
| 03 | Ambientní osvětlení | FS LL | 1 | 63315A2E8E6 | NoS | Shop at ECS Tuning | ||||
| 04 | Ambientní osvětlení | BFS LL | 1 | 63315A2E8E4 | NoS | Shop at ECS Tuning | ||||
| 05 | Osvětlení Center Stack | 1 | 63315A2E8E8 | NoS | Shop at ECS Tuning | |||||
| Pro vozidla s REŽIMY MINI EXPERIENCE |
S4VFA=Ano |
|||||||||
| 06 | Kombin. šroub s čočkovou hlavou na plech | 2 | 07149323312 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Díl není centrálně skladován.)
