Výtokové trysky/clony for BMW 5 Series E12 520 (1979)

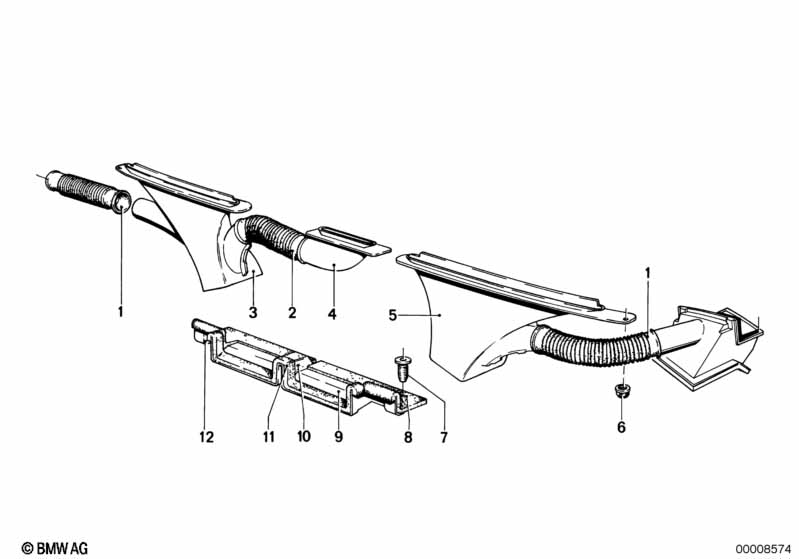

This Výtokové trysky/clony technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hadice teplého vzduchu boční | 2 | 64211355750 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Hadice teplého vzduchu střední | 1 | 64211355749 | $3.13 | Shop at ECS Tuning | |||||
| 03 | Hubice odmrazovače pravá | 1 | 64221354662 | $18.67 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Hubice odmrazovače střední | 1 | 64221354660 | $7.86 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Hubice odmrazovače levá | 1 | 64221354661 | $18.48 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Matice s nákružkem | 2 | 51451819789 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Zátka | GRAU | 3 | 51461805542 | $0.18 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Těsnicí pásek | 2 | 64221354742 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Tlumicí deska | 2 | 64221355694 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Těsnicí pásek | 1 | 64221354744 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Těsnicí pásek | 1 | 64221354743 | UKONČENO | Shop at ECS Tuning | |||||
| 12 | Krycí díl | 1 | 64221354741 | $12.39 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Výtokové trysky/clony?
- This technical diagram illustrates the Výtokové trysky/clony within the Topení a klimatizace group for the 5 Series E12 520 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Hadice teplého vzduchu boční (Part #64211355750).
- Which models use the hardware listed in this Výtokové trysky/clony?
- The hardware and components featured in the Výtokové trysky/clony are specific to the 5 Series E12 520 produced during 1979. These technical specifications ensure that parts like the Hadice teplého vzduchu boční (64211355750) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Výtokové trysky/clony assembly?
- Each item in the Výtokové trysky/clony corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Hadice teplého vzduchu boční by locating its position on the schematic, which then links to the official BMW part number 64211355750 for the Topení a klimatizace section.
