Mřížka čerstvého vzduchu for BMW 7 Series E23 745i (1986)

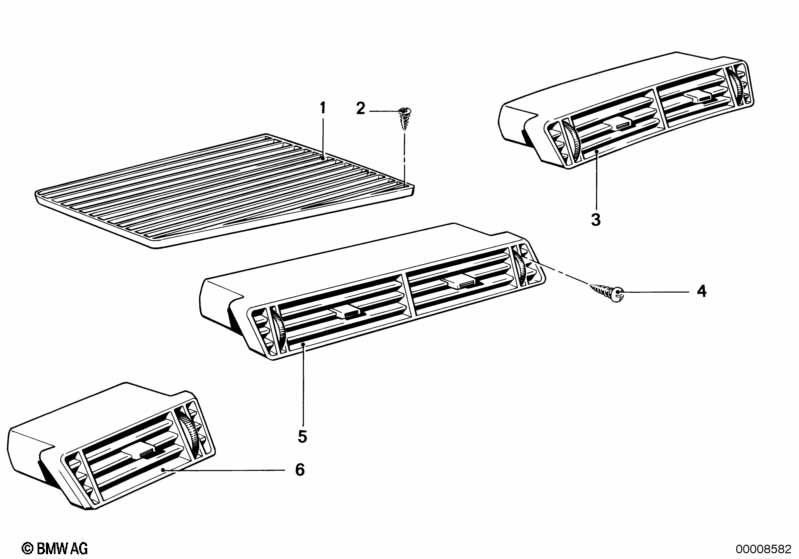

This Mřížka čerstvého vzduchu technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kryt | ANTHRAZIT | 1 | 64221375005 | $77.84 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Kryt | NUTRIA | 1 | 64221375273 | $66.40 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Kryt | PINIENGRUEN | 1 | 64221375523 | $66.12 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Klimatizace |
=Ano |
|||||||||
| 01 | Kryt obložení přístrojová deska | ANTHRAZIT | 1 | 09/1985 | 64221380513 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Kryt obložení přístrojová deska | NUTRIA | 1 | 09/1985 | 64221380515 | $83.70 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Kryt obložení přístrojová deska | PINIENGRUEN | 1 | 09/1985 | 64221380517 | $83.70 | UKONČENO | Shop at ECS Tuning | ||
| Pro vozidla s Klimatizace a High Line |
=Ano =Ano |
|||||||||
| 01 | Kryt obložení přístrojová deska | ANTHRAZIT | 1 | 64221953901 | $75.61 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Samořezný šroub s čočkovou hlavou | ST2,9X13 | 2 | 07119906706 | $0.09 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Mřížka čerstvého vzduchu pravá | 1 | 64221375027 | $105.03 | Shop at ECS Tuning | |||||
| 04 | Zápustný šroub na plech s čočkovou hl. | ST2,9X25 | 6 | 07119902428 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Mřížka čerstvého vzduchu střední | 1 | 64221375007 | $110.25 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Mřížka čerstvého vzduchu levá | 1 | 64221375031 | $65.86 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
