Ovládací panel topení Behr for BMW 7 Series E32 730iL (1993)

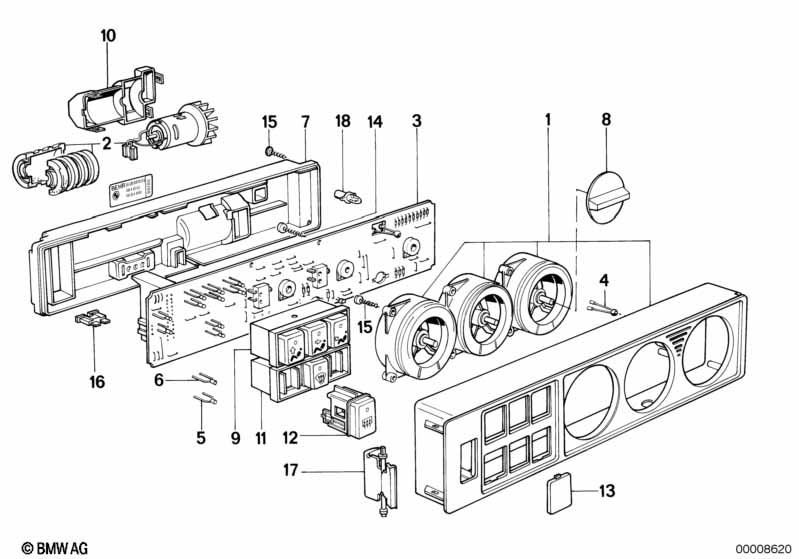

This Ovládací panel topení Behr technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Vhodné pouze pro Ovládání topení 64 11 8 390 900 Ovládání topení 64 11 8 350 014 Ovládání topení 64 11 8 390 666 Ovládání topení 64 11 8 390 667 Ovládání topení 64 11 9 059 313 Ovládání topení 64 11 9 059 314 |
|||||||||
| 01 | Přední panel | 1 | 64111382854 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Snímací ventilátor vnitřní teplota | 1 | 64118390150 | $117.73 | Shop at ECS Tuning | |||||
| 03 | Plošný spoj obslužná část topení | 1 | 64111390902 | $577.20 | Shop at ECS Tuning | |||||
| 04 | Teplotní čidlo vnitřní prostor | 1 | 64111388265 | $33.45 | Shop at ECS Tuning | |||||
| 05 | Svítivá dioda | GELB | 2 | 64111368465 | $6.57 | Shop at ECS Tuning | ||||
| 06 | Svítivá dioda | GRUEN | 3 | 64111369356 | $6.57 | Shop at ECS Tuning | ||||
| 06 | Svítivá dioda | ORANGE | 5 | 64111382791 | $7.72 | Shop at ECS Tuning | ||||
| 07 | Víko | 1 | 64111374274 | $12.61 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Otočný knoflík teplota | 3 | 64111374276 | $8.27 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Ovládací panel topení | IHR | 1 | 64118390666 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Víko | 1 | 64111374245 | $3.61 | Shop at ECS Tuning | |||||
| 11 | Spínač odmrazování | 1 | 64111374277 | $31.53 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Spínač vyhřívané zadní sklo | 1 | 09/1988 | 64111390697 | $31.92 | Shop at ECS Tuning | ||||
| 13 | Slepý uzávěr | 2 | 64111374278 | $1.83 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Šroub | 30X12 | 8 | 64111391719 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Šroub | 4 | 64111378860 | $0.28 | Shop at ECS Tuning | |||||
| 17 | Svorka | 1 | 64111374250 | $5.42 | UKONČENO | Shop at ECS Tuning | ||||
| 18 | Žárovka | 1,2W | 2 | 62111368299 | $3.00 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
