Výtokové trysky/clony for BMW 8 Series E31 850Ci (1999)

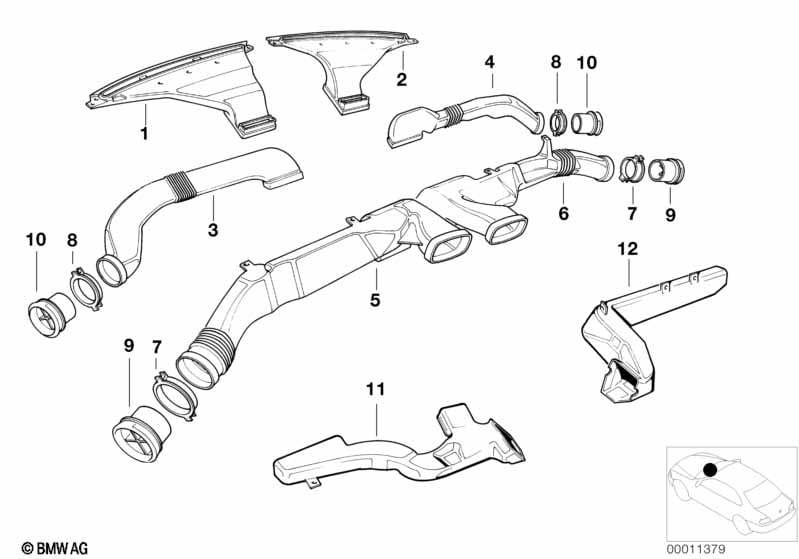

This Výtokové trysky/clony technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hubice odmrazovače levá | 1 | 64221940803 | $37.04 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Hubice odmrazovače pravá | 1 | 64221940804 | $27.90 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Kanál studeného vzduchu levý | 1 | 64221940807 | $35.71 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Kanál studeného vzduchu pravý | 1 | 64221940808 | $34.88 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Kanál teplého vzduchu levý | 1 | 64221940805 | $20.65 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Kanál teplého vzduchu pravý | 1 | 64221940806 | $20.65 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Přídržný kroužek | 2 | 64221970414 | $3.33 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Přídržný kroužek | 2 | 64221970417 | $3.33 | Shop at ECS Tuning | |||||
| 09 | Tryska | 2 | 64221940791 | $7.93 | Shop at ECS Tuning | |||||
| 10 | Tryska | 2 | 64221970419 | $8.43 | Shop at ECS Tuning | |||||
| 11 | Topný kanál levý | 1 | 64221940831 | $25.08 | Shop at ECS Tuning | |||||
| 12 | Topný kanál pravý | 1 | 64221908702 | $18.77 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
