Bovden poloha klapky topení for BMW 5 Series E34 530i (1995)

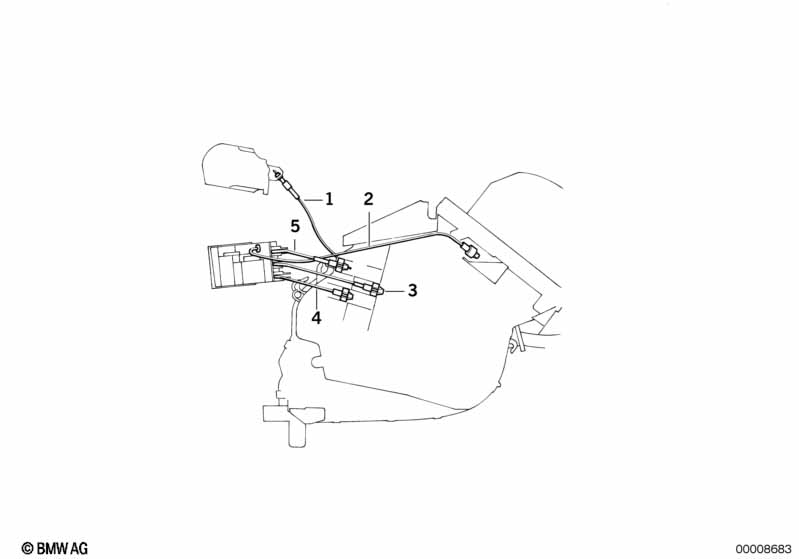

This Bovden poloha klapky topení technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bovden vyhřívatelná ventilace | ROT/ROT | 1 | 07/1992 | 64118391270 | $8.73 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Bovden čerstvý vzduch | GELB/SCHWARZ | 1 | 64111384159 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Bovden ventilace | BLAU/BLAU | 1 | 06/1992 | 64118391264 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Bovden prostor pro nohy | GRUEN/GRUEN | 1 | 64111384158 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Bovden odmražení | ROT/ROT | 1 | 09/1991 | 64118390706 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 530i Bovden poloha klapky topení?
- This technical diagram illustrates the Bovden poloha klapky topení within the Topení a klimatizace group for the 5 Series E34 530i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Bovden vyhřívatelná ventilace (Part #64118391270).
- Which models use the hardware listed in this Bovden poloha klapky topení?
- The hardware and components featured in the Bovden poloha klapky topení are specific to the 5 Series E34 530i produced during 1995. These technical specifications ensure that parts like the Bovden vyhřívatelná ventilace (64118391270) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bovden poloha klapky topení assembly?
- Each item in the Bovden poloha klapky topení corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Bovden vyhřívatelná ventilace by locating its position on the schematic, which then links to the official BMW part number 64118391270 for the Topení a klimatizace section.
