Topení for BMW 3 Series E21 316 (1983)

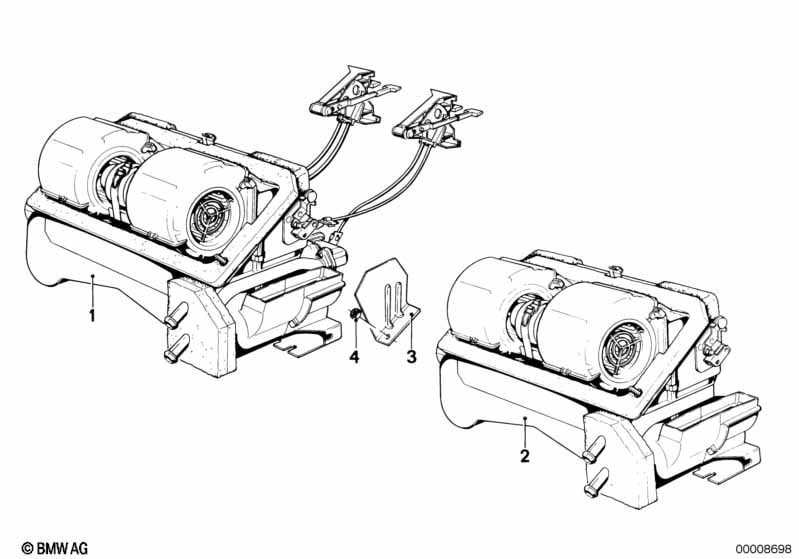

This Topení technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Topení | SOFICA | 1 | 08/1979 | 64111366661 | $672.39 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Vodní odváděcí plech levý | 1 | 64111837997 | $1.86 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Vodní odváděcí plech pravý | 1 | 64111837998 | $1.86 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice s podložkou | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Topení?
- This technical diagram illustrates the Topení within the Topení a klimatizace group for the 3 Series E21 316 produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Topení (Part #64111366661).
- Which models use the hardware listed in this Topení?
- The hardware and components featured in the Topení are specific to the 3 Series E21 316 produced during 1983. These technical specifications ensure that parts like the Topení (64111366661) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Topení assembly?
- Each item in the Topení corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Topení by locating its position on the schematic, which then links to the official BMW part number 64111366661 for the Topení a klimatizace section.
