Topení for BMW 3 Series E21 318i (1982)

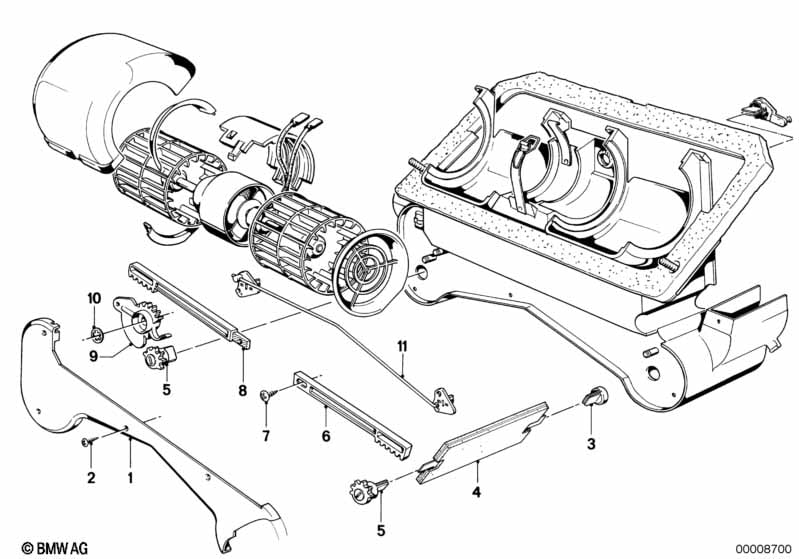

This Topení technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Sofica | |||||||||
| 01 | Víko | 1 | 08/1979 | 64111366666 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Samořezný šroub s čočkovou hlavou | ST2,9X6,5 | 5 | 07119907906 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Vedení | 2 | 64111360599 | $1.69 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Klapka rozdělovače vzduchu | 1 | 08/1979 | 64111360645 | $24.27 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Klapka rozdělovače vzduchu levá | 1 | 08/1979 | 64111366667 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Opravná sada ovládání topení/klapka | 1 | 03/1982 | 64111372959 | $30.97 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 318i Topení?
- This technical diagram illustrates the Topení within the Topení a klimatizace group for the 3 Series E21 318i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Víko (Part #64111366666).
- Which models use the hardware listed in this Topení?
- The hardware and components featured in the Topení are specific to the 3 Series E21 318i produced during 1982. These technical specifications ensure that parts like the Víko (64111366666) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Topení assembly?
- Each item in the Topení corresponds to the numbered list below the illustration. For the 3 Series E21 318i, you can identify the Víko by locating its position on the schematic, which then links to the official BMW part number 64111366666 for the Topení a klimatizace section.
