Topení for BMW 5 Series E12 518 (1976)

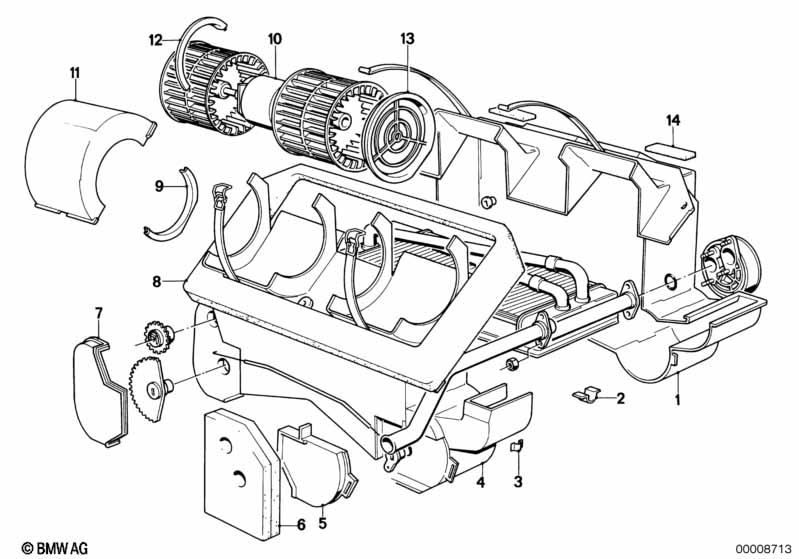

This Topení technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Polovina skříně zadní | 1 | 64111354627 | $390.60 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Svorka | 8 | 64111354630 | $0.38 | Shop at ECS Tuning | |||||
| 03 | Svorka | 5 | 64111355720 | $1.68 | Shop at ECS Tuning | |||||
| 04 | Polovina skříně přední | 1 | 64111354628 | $289.04 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Taška levá | 1 | 08/1979 | 64111355771 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Těsnění | 1 | 64111365809 | $3.18 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Taška pravá | X | 64111355770 | $7.92 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Těsnicí rám | 1 | 64111355684 | $52.42 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Vstupní rám dolní | 2 | 64111355679 | $2.62 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Ventilátor | BEHR | 1 | 64111354618 | $351.41 | Shop at ECS Tuning | ||||
| 11 | Ventilátor horní díl | 2 | 64111355682 | $12.05 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Vstupní rám vnitřní | 2 | 64111355680 | $3.25 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Vstupní rám vnější | BEHR | 2 | 64111355681 | $13.07 | UKONČENO | Shop at ECS Tuning | |||
| 14 | Těsnění | 2 | 64111355685 | $0.66 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 518 Topení?
- This technical diagram illustrates the Topení within the Topení a klimatizace group for the 5 Series E12 518 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Polovina skříně zadní (Part #64111354627).
- Which models use the hardware listed in this Topení?
- The hardware and components featured in the Topení are specific to the 5 Series E12 518 produced during 1976. These technical specifications ensure that parts like the Polovina skříně zadní (64111354627) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Topení assembly?
- Each item in the Topení corresponds to the numbered list below the illustration. For the 5 Series E12 518, you can identify the Polovina skříně zadní by locating its position on the schematic, which then links to the official BMW part number 64111354627 for the Topení a klimatizace section.
