Ovládací panel topení for BMW 7 Series E23 730 (1979)

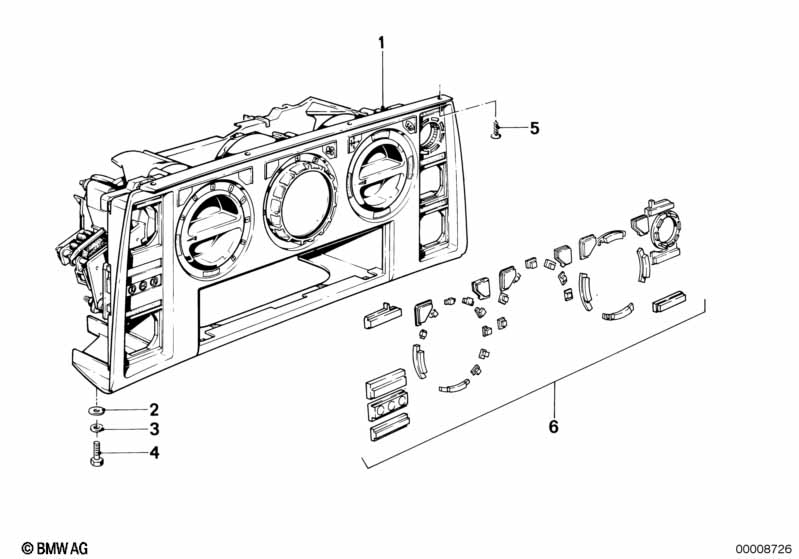

This Ovládací panel topení technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ovládací panel topení | 1 | 08/1979 | 64111364990 | $1007.19 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Podložka | A6,4-200HV-ZNS3 | 2 | 08/1979 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 03 | Pružná podložka černá | B6-ZN | 2 | 08/1979 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 03 | Podložka | 5.3-140 HV-ZNS | 2 | 08/1979 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 03 | Pružná podložka | B6-ZNS3 | 2 | 08/1979 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | ||
| 04 | Šestihranný šroub | M6X12-8.8-ZNNIV | 2 | 08/1979 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 05 | Zápustný šroub na plech s čočkovou hl. | ST3,5X9,5 | 4 | 08/1979 | 07119902524 | $0.82 | Shop at ECS Tuning | |||
| 06 | Sada prizmata | 1 | 08/1979 | 64111366503 | $304.67 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
