Uzavírací stěna topení for BMW 3 Series E21 318i (1982)

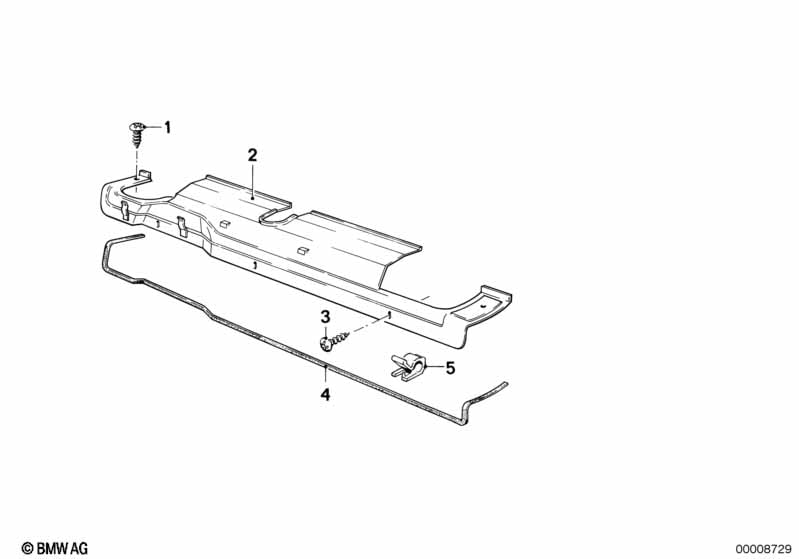

This Uzavírací stěna topení technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Samořezný šroub s čočkovou hlavou | ST4,8X13-Z1 | 4 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 02 | Uzavírací stěna topení | 1 | 51711871269 | $51.30 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Austrálie |
L810A=Ano |
|||||||||
| 02 | Uzavírací stěna topení | 1 | 51711871269 | $51.30 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Švédsko |
=Ano |
|||||||||
| 02 | Uzavírací stěna topení | 1 | 51711871269 | $51.30 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub na plech | ST4,8X16-ZNS3 | 5 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Těsnění | L=1300 MM | 1 | 51711825972 | $2.88 | Shop at ECS Tuning | ||||
| 05 | Kabelová svorka | D=6MM | X | 63121364431 | $0.93 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
