Topení/klimatizace for BMW 7 Series E23 733i (1979)

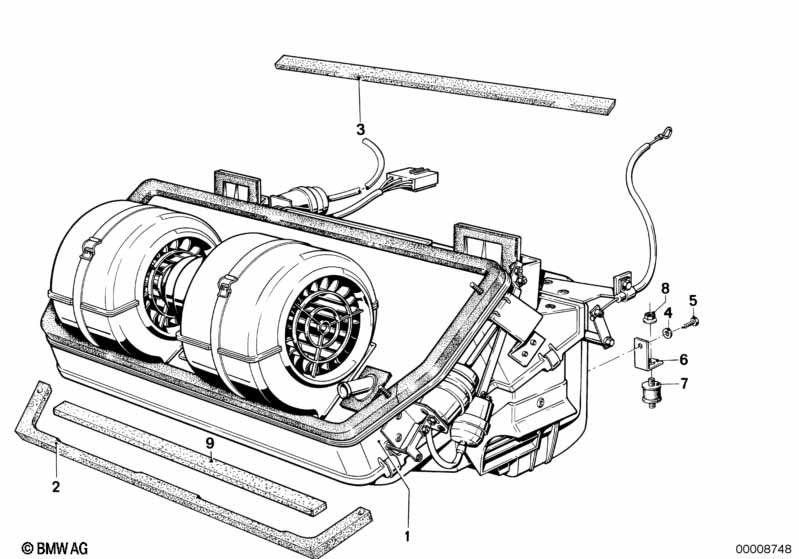

This Topení/klimatizace technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Klimatizace |
=Ano |
|||||||||
| 01 | Topení/klimatizace | 1 | 64111364861 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Těsnění | 1 | 64111365767 | $10.16 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Těsnění | 761MM | 1 | 64111361860 | $7.79 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Podložka | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 04 | Podložka | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub na plech | ST4,8X13-C | 2 | 07119916813 | $0.13 | Shop at ECS Tuning | ||||
| 06 | Uchycení | 2 | 64111361863 | UKONČENO | Shop at ECS Tuning | |||||
| 07 | Tlumič kmitů | 2 | 64218042132 | $8.10 | Shop at ECS Tuning | |||||
| 08 | Šestihranná matice s podložkou | M6 | 6 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Těsnění | 761MM | 1 | 64111361860 | $7.79 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 733i Topení/klimatizace?
- This technical diagram illustrates the Topení/klimatizace within the Topení a klimatizace group for the 7 Series E23 733i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Topení/klimatizace (Part #64111364861).
- Which models use the hardware listed in this Topení/klimatizace?
- The hardware and components featured in the Topení/klimatizace are specific to the 7 Series E23 733i produced during 1979. These technical specifications ensure that parts like the Topení/klimatizace (64111364861) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Topení/klimatizace assembly?
- Each item in the Topení/klimatizace corresponds to the numbered list below the illustration. For the 7 Series E23 733i, you can identify the Topení/klimatizace by locating its position on the schematic, which then links to the official BMW part number 64111364861 for the Topení a klimatizace section.
