Ovládání topení/klima for BMW 7 Series E23 728iS (1986)

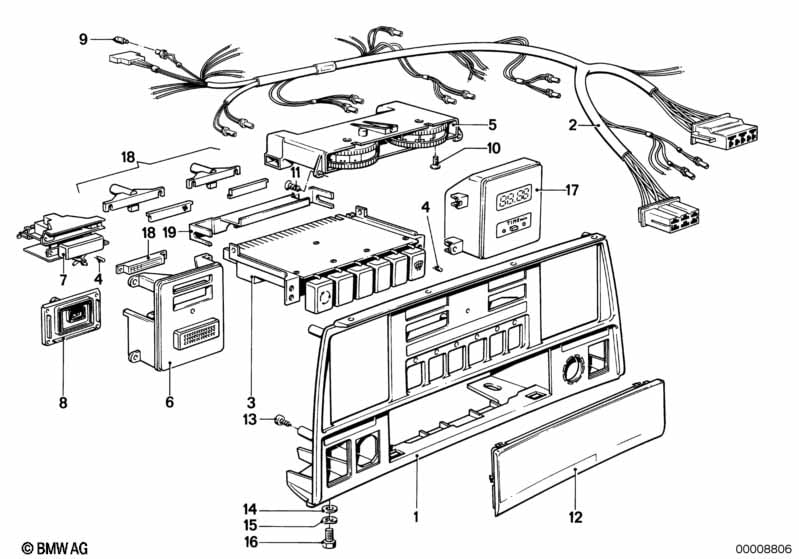

This Ovládání topení/klima technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přední panel | (DEUTSCH) | 1 | 04/1980 | 64111368461 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Přední panel | (FRANCAISE) | 1 | 04/1980 | 64111375079 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Spínací lišta | 1 | 04/1980 | 64111368463 | $402.05 | Shop at ECS Tuning | ||||
| 04 | Svítivá dioda | GELB | 1 | 04/1980 | 64111368465 | $6.57 | Shop at ECS Tuning | |||
| 04 | Svítivá dioda | GRUEN | 6 | 04/1980 | 64111369356 | $6.57 | Shop at ECS Tuning | |||
| 05 | Regulátor topení | CELSIUS | 1 | 04/1980 | 64111368466 | $306.24 | Shop at ECS Tuning | |||
| 05 | Regulátor topení | FAHRENHEIT | 1 | 04/1980 | 64111368467 | $306.24 | Shop at ECS Tuning | |||
| 06 | Pouzdro | 1 | 04/1980 | 64111368476 | $34.04 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Teplotní čidlo | 1 | 04/1980 | 64111368477 | $88.44 | Shop at ECS Tuning | ||||
| 08 | Díl skříně zadní | 1 | 04/1980 | 64111368481 | $11.07 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Šroub s čočkovitou hlavou | M3X10-Z4-1 | X | 04/1980 | 07119907605 | $0.38 | UKONČENO | Shop at ECS Tuning | ||
| 11 | Samořezný šroub s čočkovou hlavou | ST2,9X9,5 | 2 | 04/1980 | 07119907707 | $0.09 | Shop at ECS Tuning | |||
| 12 | Clona | 1 | 04/1980 | 64111362803 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Zápustný šroub na plech s čočkovou hl. | ST3,5X13 | 4 | 04/1980 | 07119902578 | $0.36 | Shop at ECS Tuning | |||
| 14 | Podložka | A6,4-200HV-ZNS3 | 2 | 04/1980 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 15 | Pružná podložka | B6 | 2 | 04/1980 | 07119932072 | $0.09 | UKONČENO | Shop at ECS Tuning | ||
| 15 | Pružná podložka černá | B6-ZN | 2 | 04/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 15 | Podložka | 5.3-140 HV-ZNS | 2 | 04/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 15 | Pružná podložka | B6-ZNS3 | 2 | 04/1980 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | ||
| 16 | Šestihranný šroub | M6X12-8.8-ZNNIV | 2 | 04/1980 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 18 | Sada prizmata | DEUTSCH/ENGLISH | 1 | 04/1980 | 64111368642 | $329.22 | UKONČENO | Shop at ECS Tuning | ||
| 18 | Sada prizmata | (FRANCAISE) | 1 | 04/1980 | 64111374789 | UKONČENO | Shop at ECS Tuning | |||
| 19 | Kryt | 1 | 04/1980 | 64111370376 | $8.39 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
