Montážní díly kompresor for BMW 7 Series E23 728i (1986)

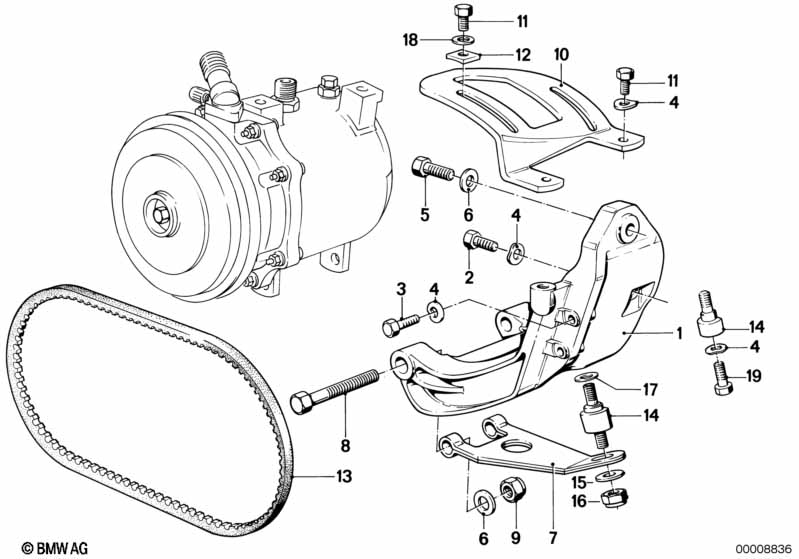

This Montážní díly kompresor technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | vhodné jen pro lopatkový kompresor | |||||||||
| 01 | Konzola uložení | 1 | 64521268277 | $106.02 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Pružná podložka | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub | M10X28 | 1 | 07119913836 | $0.63 | Shop at ECS Tuning | ||||
| 06 | Pružná podložka | B10-ZNS3 | X | 07119904463 | Shop at ECS Tuning | |||||
| 07 | Vzpěra | 1 | 64521276623 | $54.83 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M10X65 | 2 | 07119912666 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Šestihranná matice samojisticí | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Upínací příložka | 1 | 64521273925 | $11.49 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Šestihranný šroub | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Podložka | 2 | 64521276354 | $4.39 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Klínový řemen | 1 | 64521711058 | Shop at ECS Tuning | ||||||
| 14 | Závitový kolík | 1 | 64521276622 | $13.11 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Podložka | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 17 | Podložka | 1 | 11610643134 | $0.30 | Shop at ECS Tuning | |||||
| 18 | Podložka | 2 | 64521276354 | $4.39 | UKONČENO | Shop at ECS Tuning | ||||
| 19 | Šestihranný šroub | M8X18-8.8-ZNS3 | 1 | 07119904146 | $0.65 | Shop at ECS Tuning | ||||
