Nezávislé topení-jednotlivé díly for BMW 8 Series E31 850Ci (1999)

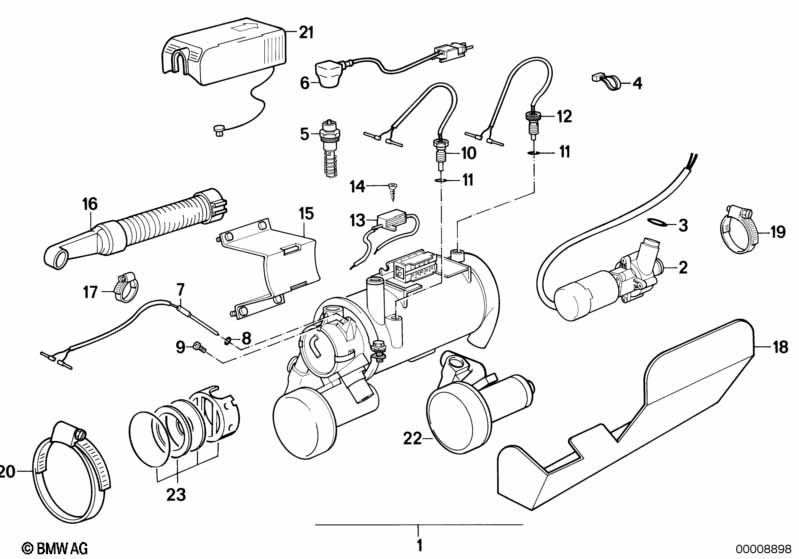

This Nezávislé topení-jednotlivé díly technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Topení | 1 | 64121392072 | Shop at ECS Tuning | ||||||
| 02 | Vodní čerpadlo | 1 | 64121392116 | Shop at ECS Tuning | ||||||
| 03 | Těsnicí kroužek | 1 | 64121390065 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Žhavicí svíčka | 1 | 64211378883 | $47.99 | Shop at ECS Tuning | |||||
| 06 | Kabel | 1 | 64211378884 | Shop at ECS Tuning | ||||||
| 07 | Teplotní čidlo topení | 1 | 64211378885 | Shop at ECS Tuning | ||||||
| 08 | Těsnicí kroužek | 5X1 | 1 | 64121378887 | Shop at ECS Tuning | |||||
| 09 | Šroub s čočkovitou hlavou | M4X8 | 1 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 10 | Teplotní čidlo topení | 1 | 64211378888 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Těsnicí kroužek | 7X2 | 1 | 64121378889 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Teplotní spínač | 1 | 64128351820 | UKONČENO | Shop at ECS Tuning | |||||
| 13 | Odpor | 1 | 64121378892 | UKONČENO | Shop at ECS Tuning | |||||
| 15 | Uchycení | 1 | 64121392108 | UKONČENO | Shop at ECS Tuning | |||||
| 16 | Tlumič výfuku | 1 | 64121392902 | UKONČENO | Shop at ECS Tuning | |||||
| 17 | hadicová spona | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 18 | Tepelný ochranný kryt | 1 | 64121392112 | UKONČENO | Shop at ECS Tuning | |||||
| 19 | hadicová spona | L42-48 | 1 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 20 | hadicová spona | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 21 | Víčko | 1 | 64211378895 | Shop at ECS Tuning | ||||||
| 22 | Ventilátor | 1 | 64121392914 | UKONČENO | Shop at ECS Tuning | |||||
| 23 | Opravná sada filtr | 1 | 64121391281 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
