Výfukové potrubí/tlumič výfuku for BMW 8 Series E31 850Ci (1999)

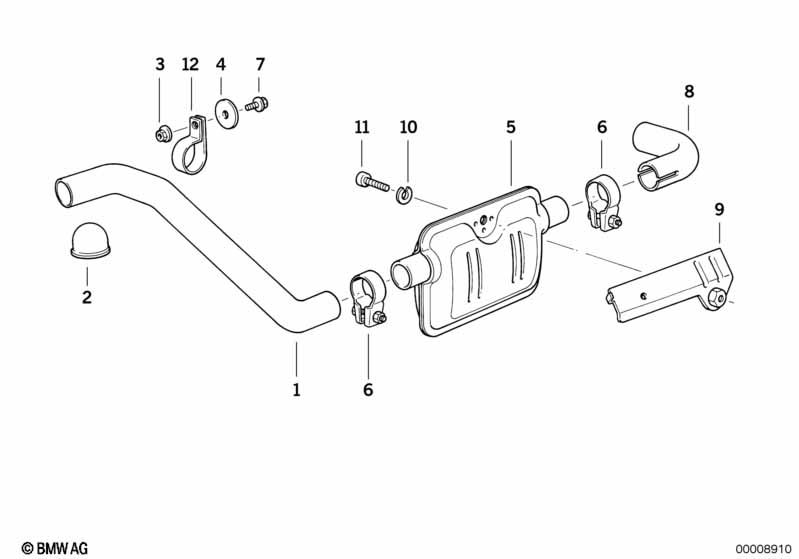

This Výfukové potrubí/tlumič výfuku technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Pryžový doraz | 2 | 13717539903 | $6.32 | Shop at ECS Tuning | |||||
| 03 | Matice na plech | D=18MM, ZNS-3 | 2 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 04 | Vymezovací podložka | 2 | 52531453322 | $0.84 | Shop at ECS Tuning | |||||
| 05 | Výfukové potrubí tlumič výfuku | 1 | 64121378083 | Shop at ECS Tuning | ||||||
| 07 | Šestihranný šroub s podložkou | M6X12-U2-8.8 | 1 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Výfukové potrubí tlumič výfuku | 1 | 64128351034 | Shop at ECS Tuning | ||||||
| 09 | Uchycení | 1 | 64128353009 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Pružná podložka | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Isa-šroub | M8X16-8.8-ZNS3 | 1 | 07129903984 | $1.96 | Shop at ECS Tuning | ||||
| 12 | hadicová spona | 1 | 64121389483 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
