Elektrické díly automatická klimatizace for BMW 7 Series E38 728i (1998)

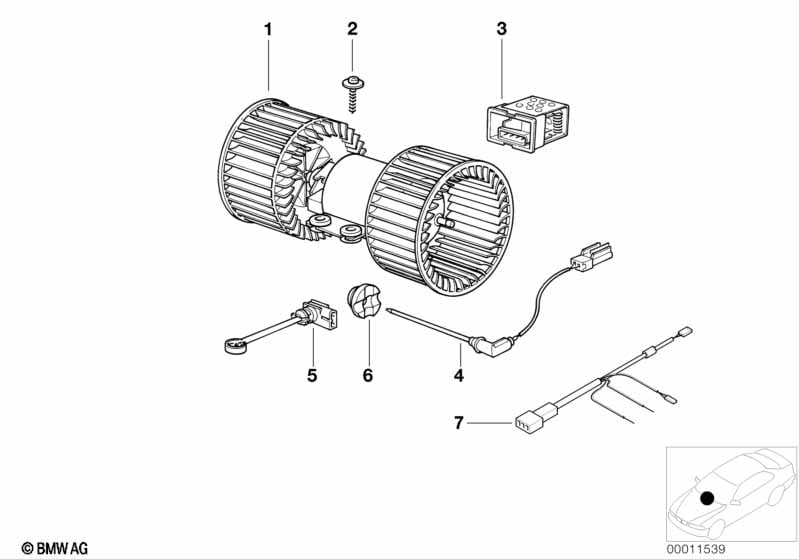

This Elektrické díly automatická klimatizace technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ventilátor | 1 | 64118391809 | $320.03 | Shop at ECS Tuning | |||||
| 02 | Šroub | 3 | 64118391922 | $1.28 | Shop at ECS Tuning | |||||
| 03 | Regulátor ventilátor topení | 1 | 64118391399 | $334.43 | Shop at ECS Tuning | |||||
| 04 | Teplotní čidlo výparník | 2 | 64518364458 | $33.45 | Shop at ECS Tuning | |||||
| 05 | Teplotní čidlo topení | 2 | 64111374242 | $33.45 | Shop at ECS Tuning | |||||
| 06 | Pryžová průchodka | 1 | 64511377494 | $6.63 | Shop at ECS Tuning | |||||
| 07 | Kab. sada ventilace mřížka čerst.vzduchu | 1 | 61128352654 | $104.51 | Shop at ECS Tuning |
