Klimatizace-uzavírací stěna/mikrofiltr for BMW 8 Series E31 850Ci (1994)

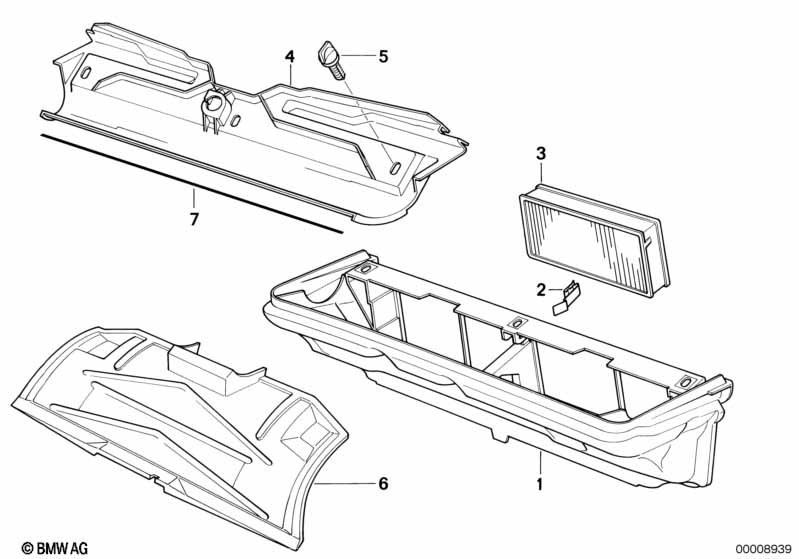

This Klimatizace-uzavírací stěna/mikrofiltr technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uzavírací stěna topení | 1 | 51711383302 | $254.14 | Shop at ECS Tuning | |||||
| 02 | Svorka | 1 | 64311383210 | $1.10 | Shop at ECS Tuning | |||||
| 03 | Sada mikrofiltr/filtr s aktivním uhlím | 2 | 64312339891 | Shop at ECS Tuning | ||||||
| 04 | Kryt mikrofiltr | 1 | 64311383211 | $36.47 | Shop at ECS Tuning | |||||
| 05 | Uzavírací víko | 3 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 06 | Kryt | 1 | 06/1990 | 64118390083 | $29.98 | Shop at ECS Tuning | ||||
| 07 | Těsnění | 765MM | 1 | 64311392808 | $13.84 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Klimatizace-uzavírací stěna/mikrofiltr?
- This technical diagram illustrates the Klimatizace-uzavírací stěna/mikrofiltr within the Topení a klimatizace group for the 8 Series E31 850Ci produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Uzavírací stěna topení (Part #51711383302).
- Which models use the hardware listed in this Klimatizace-uzavírací stěna/mikrofiltr?
- The hardware and components featured in the Klimatizace-uzavírací stěna/mikrofiltr are specific to the 8 Series E31 850Ci produced during 1994. These technical specifications ensure that parts like the Uzavírací stěna topení (51711383302) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Klimatizace-uzavírací stěna/mikrofiltr assembly?
- Each item in the Klimatizace-uzavírací stěna/mikrofiltr corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Uzavírací stěna topení by locating its position on the schematic, which then links to the official BMW part number 51711383302 for the Topení a klimatizace section.
