Elektrické díly klimatizace for BMW 3 Series E36 318ti (1998)

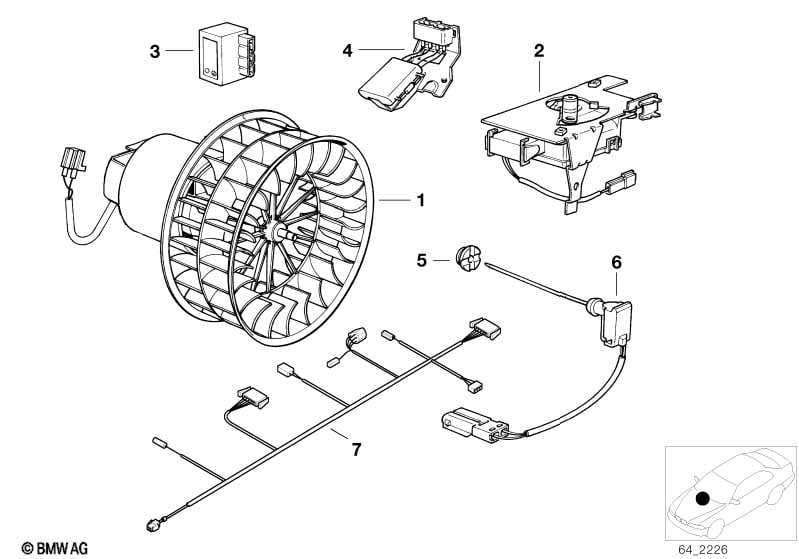

This Elektrické díly klimatizace technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ventilátor | 1 | 64118361913 | $432.93 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Servopohon | 1 | 64118361929 | $245.04 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Řídicí jednotka klimatizace | 1 | 09/1995 | 64118370928 | $53.37 | Shop at ECS Tuning | ||||
| 04 | Odpor stupně ventilátoru | 1 | 64118372775 | $34.03 | Shop at ECS Tuning | |||||
| 05 | Teplotní čidlo výparník | 1 | 64518364458 | $33.45 | Shop at ECS Tuning | |||||
| 06 | Pryžová průchodka | 1 | 64511377494 | $6.63 | Shop at ECS Tuning | |||||
| 07 | Kabelová sada klimatizace | 1 | 09/1995 | 61128371903 | $84.26 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Elektrické díly klimatizace?
- This technical diagram illustrates the Elektrické díly klimatizace within the Topení a klimatizace group for the 3 Series E36 318ti produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Ventilátor (Part #64118361913).
- Which models use the hardware listed in this Elektrické díly klimatizace?
- The hardware and components featured in the Elektrické díly klimatizace are specific to the 3 Series E36 318ti produced during 1998. These technical specifications ensure that parts like the Ventilátor (64118361913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Elektrické díly klimatizace assembly?
- Each item in the Elektrické díly klimatizace corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Ventilátor by locating its position on the schematic, which then links to the official BMW part number 64118361913 for the Topení a klimatizace section.
