Vodní hadice nezávislé topení for BMW 8 Series E31 850Ci (1999)

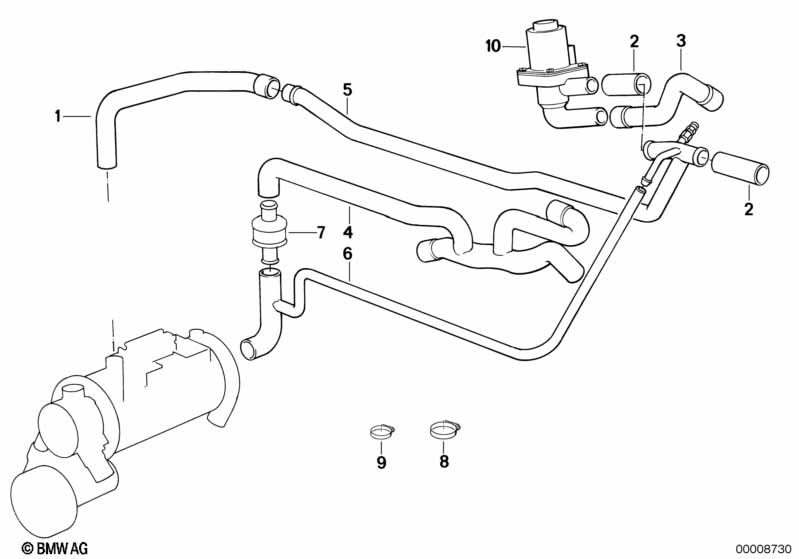

This Vodní hadice nezávislé topení technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | příliš dlouhá hadice musí být dle Originální díly jsou přizpůsobené |
|||||||||
| 01 | Hadice | 1 | 64211392158 | Shop at ECS Tuning | ||||||
| 02 | Vodní hadice přívod 1 | 2 | 64211383462 | $40.11 | Shop at ECS Tuning | |||||
| 03 | Hadice přívod | 1 | 64211382996 | $29.86 | Shop at ECS Tuning | |||||
| 04 | Hadice vratná větev | 1 | 64211383305 | $23.71 | Shop at ECS Tuning | |||||
| 04 | Vodní hadice přívod 2 | 1 | 64211383408 | Shop at ECS Tuning | ||||||
| 05 | Hadice | 1 | 64121392161 | Shop at ECS Tuning | ||||||
| 06 | Hadice vratná větev | 1 | 64211392155 | Shop at ECS Tuning | ||||||
| 07 | Zpětný ventil | 1 | 64121388249 | Shop at ECS Tuning | ||||||
| 08 | hadicová spona | L16-30 | X | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Hadicová svorka | 13,1-15,3 | 1 | 16121176918 | $1.76 | Shop at ECS Tuning | ||||
| 10 | Ventil | 1 | 64121383987 | UKONČENO | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
