Vodní hadice/vodní ventil for BMW 3 Series E46 330Ci (2003)

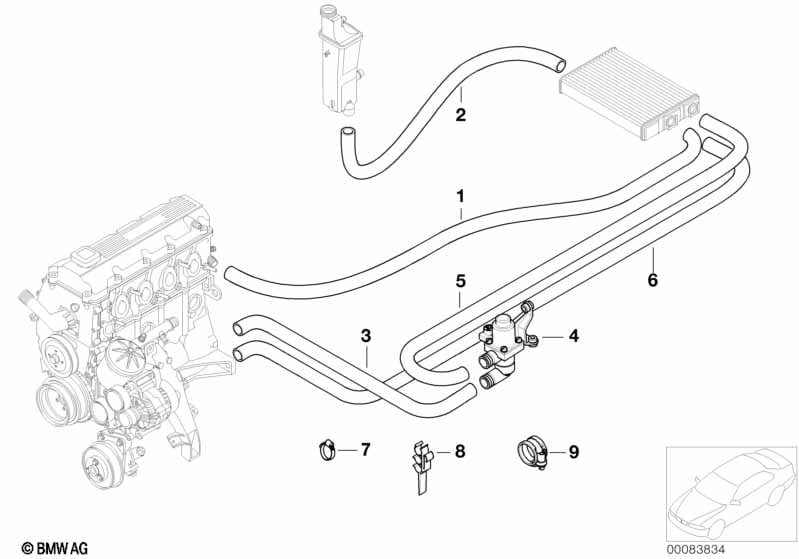

This Vodní hadice/vodní ventil technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Vodní ventil | 1 | 64118369805 | $82.22 | Shop at ECS Tuning | |||||
| Pro vozidla s Klimatizace nebo Automatická klimatizace nebo Příprava automatická klimatizace |
S530A=Ano S534A=Ano S857A=Ano |
|||||||||
| 05 | Hadice vodní ventil-topné těleso | 1 | 64218363198 | $22.93 | Shop at ECS Tuning | |||||
| 07 | hadicová spona | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Držák hadice | 2 | 64218386477 | $1.28 | Shop at ECS Tuning | |||||
| 09 | hadicová spona | 1 | 64216911339 | $2.97 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci Vodní hadice/vodní ventil?
- This technical diagram illustrates the Vodní hadice/vodní ventil within the Topení a klimatizace group for the 3 Series E46 330Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Vodní ventil (Part #64118369805).
- Which models use the hardware listed in this Vodní hadice/vodní ventil?
- The hardware and components featured in the Vodní hadice/vodní ventil are specific to the 3 Series E46 330Ci produced during 2003. These technical specifications ensure that parts like the Vodní ventil (64118369805) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vodní hadice/vodní ventil assembly?
- Each item in the Vodní hadice/vodní ventil corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Vodní ventil by locating its position on the schematic, which then links to the official BMW part number 64118369805 for the Topení a klimatizace section.
