Ovládací panel topení for BMW 1500-2000CS 1800 (1968)

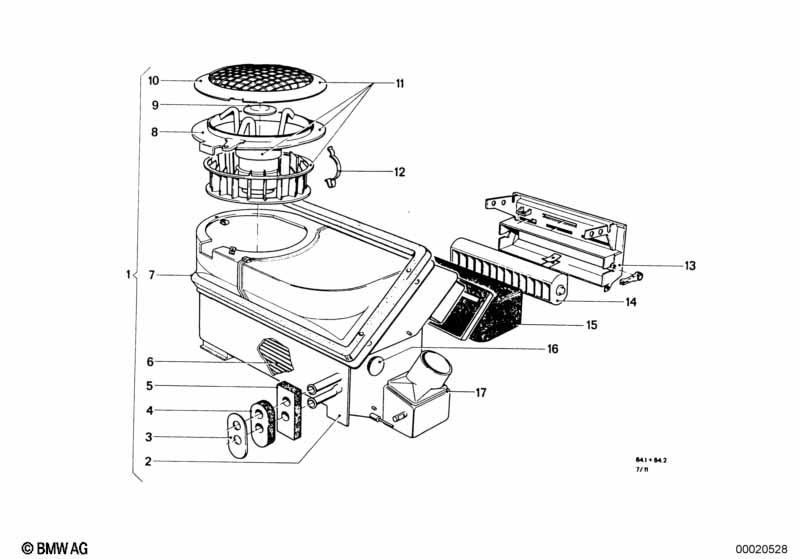

This Ovládací panel topení technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Topení | 1 | 07/1968 | 12/1971 | 64111354287 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Těsnění | 1 | 64111351327 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Těsnění | 1 | 64111356856 | $48.92 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Topné těleso | 1 | 64111351359 | $331.20 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Těsnicí rám | 1 | 64111350558 | $36.38 | Shop at ECS Tuning | |||||
| 08 | Uchycení | 1 | 64111351355 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Ochranné víčko | 1 | 64111351357 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Ochranná mřížka pomocný ventilátor | 1 | 64111351358 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Ventilátor | 1 | 64111357890 | $297.70 | Shop at ECS Tuning | |||||
| 12 | Svorka | 1 | 64111351356 | UKONČENO | Shop at ECS Tuning | |||||
| 13 | Kryt | 1 | 64111356540 | UKONČENO | Shop at ECS Tuning | |||||
| 14 | Mřížka čerstvého vzduchu | 1 | 64221350426 | UKONČENO | Shop at ECS Tuning | |||||
| 15 | Mezikus | 1 | 64221810653 | UKONČENO | Shop at ECS Tuning | |||||
| 17 | Mezikus | 1 | 64221351302 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
