Klimatizace for BMW 2500-3.3Li 2800Bav (1971)

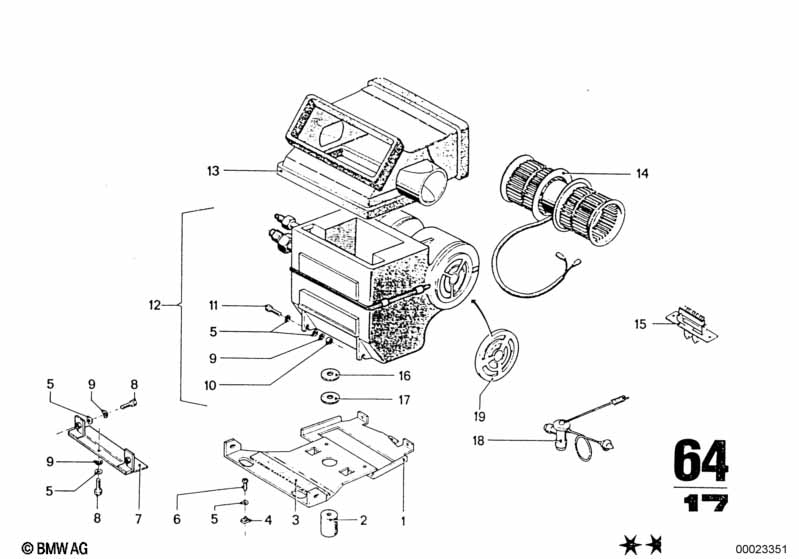

This Klimatizace technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800Bav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Základní deska | 1 | 64511351788 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Těsnicí kroužek | 3 | 64511352344 | UKONČENO | Shop at ECS Tuning | |||||
| 03 | Plstěné pásky | X | 64511372091 | $0.85 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Matice na plech | ST4,8-13-ZNS3 | 3 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Podložka | 10X5,3X1-200 HV | 12 | 07119904206 | Shop at ECS Tuning | |||||
| 05 | Podložka | 5.3-140 HV-ZNS | 12 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Samořezný šroub s čočkovou hlavou | ST4,8X13 | 4 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Uchycení | 1 | 64511351936 | UKONČENO | Shop at ECS Tuning | |||||
| 08 | Šestihranný šroub | M5X12-8.8 ZN | 4 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 09 | Pružný kroužek | B5 | 6 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Šestihranná matice | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 11 | Šestihranný šroub | M5X16 | 2 | 07119913241 | $0.18 | UKONČENO | Shop at ECS Tuning | |||
| 12 | Výparník | 1 | 64511367469 | UKONČENO | Shop at ECS Tuning | |||||
| 13 | Mezikus | 1 | 64501352076 | $44.50 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Ventilátor | 1 | 64511356015 | $451.80 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Ventilátor | 1 | 64511377752 | $164.05 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Odpor | 1 | 64511352023 | $13.84 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Těsnicí kroužek | 1 | 64511352063 | UKONČENO | Shop at ECS Tuning | |||||
| 17 | Pryžové těsnění | 1 | 64511352205 | $3.43 | UKONČENO | Shop at ECS Tuning | ||||
| 18 | EXPANZNÍ VENTIL | 1 | 64511354379 | $90.10 | UKONČENO | Shop at ECS Tuning | ||||
| 19 | Frame | 2 | 64511352019 | $7.71 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
