Topení for BMW 2500-3.3Li 2800Bav (1971)

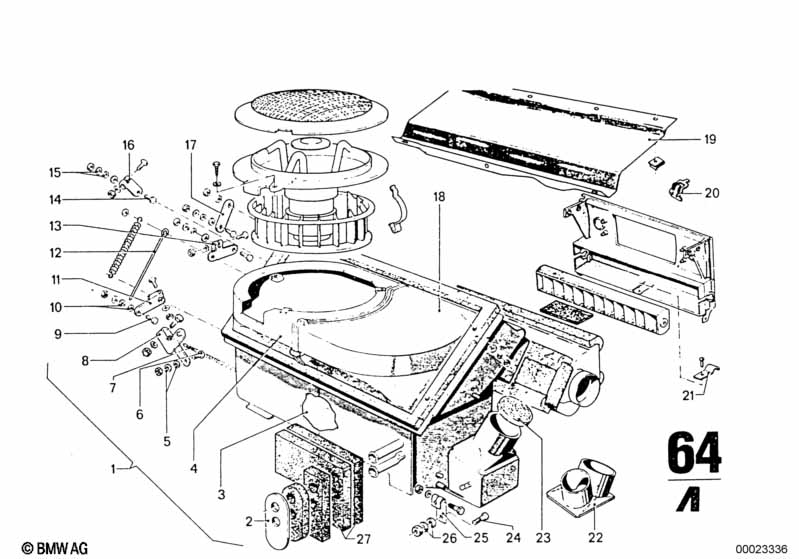

This Topení technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800Bav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Pouzdro | 1 | 08/1968 | 02/1977 | 64111354148 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Čep | 5 | 64114674219 | $3.35 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Bovden | 1 | 64111351378 | UKONČENO | Shop at ECS Tuning | |||||
| 08 | Páka | 1 | 64111351372 | UKONČENO | Shop at ECS Tuning | |||||
| 09 | Čep | 1 | 64111351376 | UKONČENO | Shop at ECS Tuning | |||||
| 10 | Okno | 2 | 64111351377 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Páka | 1 | 64111351371 | UKONČENO | Shop at ECS Tuning | |||||
| 12 | Spojovací tyč | 1 | 64111351374 | UKONČENO | Shop at ECS Tuning | |||||
| 13 | Páka | 1 | 64111351370 | UKONČENO | Shop at ECS Tuning | |||||
| 14 | Čep | 5 | 64114674219 | $3.35 | UKONČENO | Shop at ECS Tuning | ||||
| 16 | Páka | 1 | 64111351369 | UKONČENO | Shop at ECS Tuning | |||||
| 17 | Páka | 1 | 64111351368 | UKONČENO | Shop at ECS Tuning | |||||
| 18 | Klapka | 1 | 64111354138 | UKONČENO | Shop at ECS Tuning | |||||
| 19 | Krycí plech | 1 | 64111352032 | UKONČENO | Shop at ECS Tuning | |||||
| 20 | Svorka | 9 | 64111351375 | $1.74 | UKONČENO | Shop at ECS Tuning | ||||
| 21 | Pružina | 1 | 64111353658 | UKONČENO | Shop at ECS Tuning | |||||
| 24 | Čep | 5 | 64114674219 | $3.35 | UKONČENO | Shop at ECS Tuning | ||||
| 25 | Páka | 1 | 64111351373 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2800Bav Topení?
- This technical diagram illustrates the Topení within the Topení a klimatizace group for the 2500-3.3Li 2800Bav produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Pouzdro (Part #64111354148).
- Which models use the hardware listed in this Topení?
- The hardware and components featured in the Topení are specific to the 2500-3.3Li 2800Bav produced during 1971. These technical specifications ensure that parts like the Pouzdro (64111354148) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Topení assembly?
- Each item in the Topení corresponds to the numbered list below the illustration. For the 2500-3.3Li 2800Bav, you can identify the Pouzdro by locating its position on the schematic, which then links to the official BMW part number 64111354148 for the Topení a klimatizace section.
