Vodní hadice-čerpadlo-ventil for BMW 7 Series E38 728i (1998)

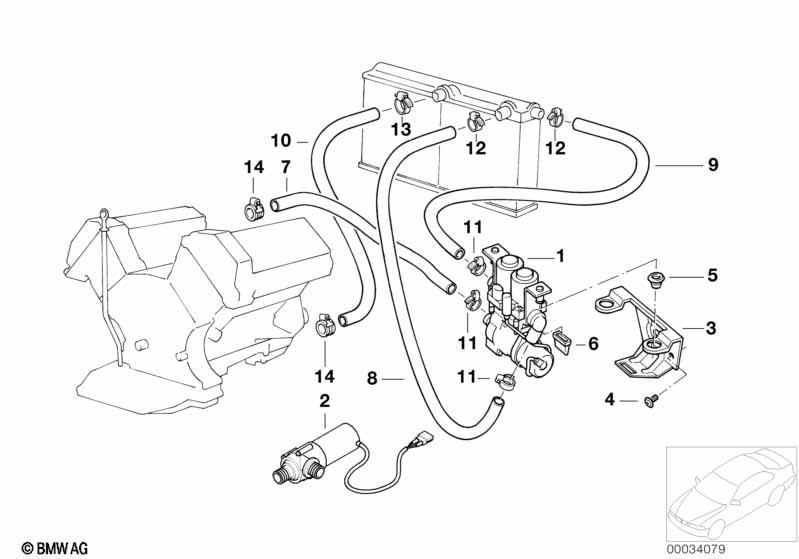

This Vodní hadice-čerpadlo-ventil technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vodní ventil s přídav. vodním čerpadlem | 1 | 03/1996 | 09/1998 | 64118374994 | $365.51 | Shop at ECS Tuning | |||
| 02 | Přídavné vodní čerpadlo pro vodní ventil | 1 | 10/1995 | 09/1998 | 64118375237 | $364.53 | Shop at ECS Tuning | |||
| 03 | Držák vodní ventil | 1 | 09/1998 | 64528150971 | $8.70 | Shop at ECS Tuning | ||||
| 04 | Šroub Torx s podložkou | ISA M6X16 | 3 | 09/1998 | 51218100708 | $0.89 | Shop at ECS Tuning | |||
| 05 | Průchodka | 2 | 09/1998 | 64126910076 | $1.50 | Shop at ECS Tuning | ||||
| 06 | Pryžové ložisko | 1 | 09/1998 | 17111712911 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Hadice chod motoru vpřed-příd.vod.čerp. | 1 | 09/1998 | 64218380270 | $17.00 | Shop at ECS Tuning | ||||
| 07 | Hadice chod motoru vpřed-vodní ventil | 1 | 09/1998 | 64218391117 | Shop at ECS Tuning | |||||
| 08 | Hadice vodní ventil-topné těleso pravá | 1 | 09/1998 | 64218371386 | $14.84 | Shop at ECS Tuning | ||||
| 09 | Hadice vodní ventil-topné těleso levá | 1 | 09/1998 | 64218391122 | $9.77 | Shop at ECS Tuning | ||||
| 10 | Hadice topné těleso-zpětný chod motoru | 1 | 09/1998 | 64218391118 | Shop at ECS Tuning | |||||
| Pro vozidla s Nezávislé topení |
=Ano |
|||||||||
| 10 | Hadice topné těleso-zpětný chod motoru | 1 | 09/1998 | 64218372124 | $173.43 | Shop at ECS Tuning | ||||
| 11 | hadicová spona | L16-30 | 3 | 09/1998 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 12 | hadicová spona | L18-24 | 2 | 09/1998 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 13 | hadicová spona | L16-30 | 1 | 09/1998 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 14 | hadicová spona | L28-33 | 2 | 09/1998 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
