Vodní hadice-čerpadlo-ventil for BMW 5 Series E39 540i (1998)

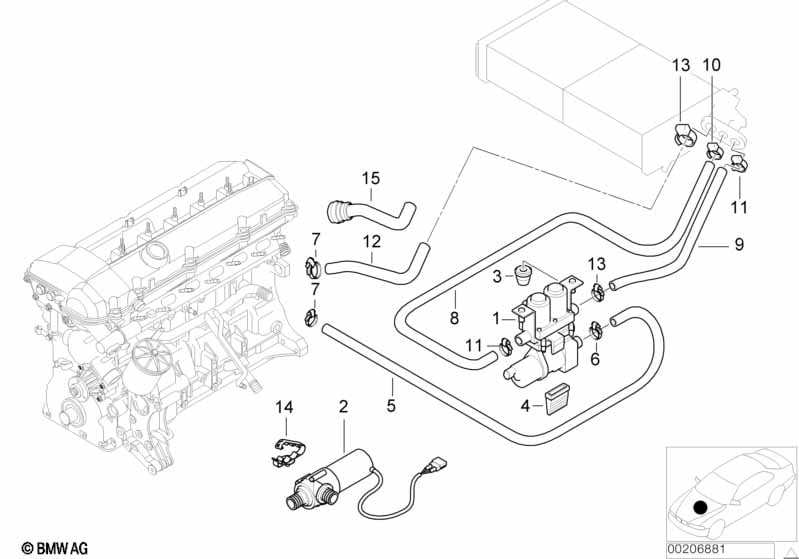

This Vodní hadice-čerpadlo-ventil technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Přídavné vodní čerpadlo pro akumulátor zbytkového tepla viz ventil.jedn. akumulátor zbytk.tepla |
|||||||||
| 01 | Vodní ventil s přídav. vodním čerpadlem | 1 | 64118374994 | $365.51 | Shop at ECS Tuning | |||||
| Pro vozidla s Akumulátor zbytkového tepla |
S538A=Ano |
|||||||||
| 01 | Vodní ventil | 1 | 64128374995 | $167.82 | Shop at ECS Tuning | |||||
| Pro vozidla s Akumulátor zbytkového tepla |
S538A=Ne |
|||||||||
| 02 | Přídavné vodní čerpadlo pro vodní ventil | 1 | 64118375237 | $364.53 | Shop at ECS Tuning | |||||
| 03 | Průchodka | 2 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 04 | Pryžové ložisko | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 05 | Hadice chod motoru vpřed-vodní ventil | 1 | 64218391005 | $15.45 | Shop at ECS Tuning | |||||
| 06 | hadicová spona | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | hadicová spona | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Hadice vodní ventil-topné těleso pravá | 1 | 64218391017 | $16.16 | Shop at ECS Tuning | |||||
| 09 | Hadice vodní ventil-topné těleso levá | 1 | 64218367929 | $9.77 | Shop at ECS Tuning | |||||
| 10 | hadicová spona | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 11 | hadicová spona | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Hadice topné těleso-zpětný chod motoru | 1 | 64218391013 | $29.86 | Shop at ECS Tuning | |||||
| 13 | hadicová spona | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Držák hadice přívod | 1 | 64118363051 | $1.42 | Shop at ECS Tuning | |||||
| 15 | Hadice topné těleso-zpětný chod motoru | 1 | 64218387521 | $72.82 | Shop at ECS Tuning | |||||
