Vedení vzduchu for BMW MINI R50 Cooper (2000)

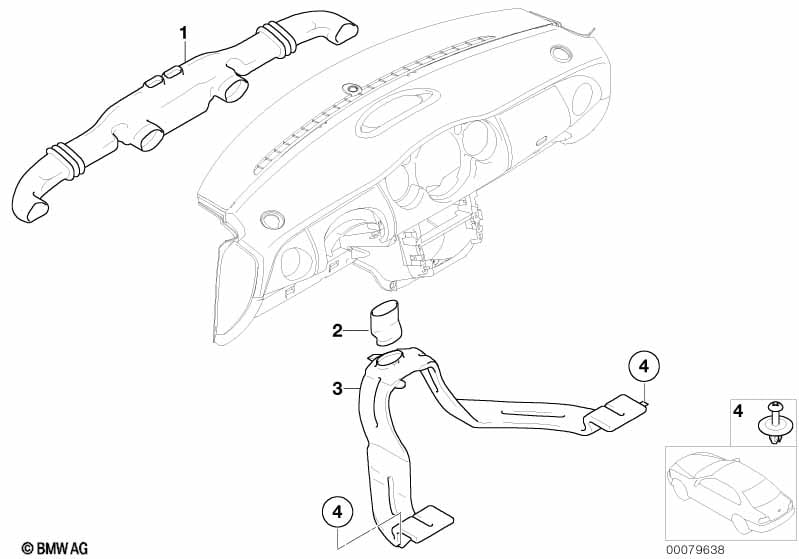

This Vedení vzduchu technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kanál studeného vzduchu | 1 | 04/2004 | 64220818857 | $22.08 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Topný kanál prostor zad.sed. mezikus | 1 | 64221149001 | $4.56 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Topný kanál prostor zadních sedadel | 1 | 64221149002 | $19.07 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Rozpěrný nýt | 2 | 51168197908 | $0.37 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Vedení vzduchu?
- This technical diagram illustrates the Vedení vzduchu within the Topení a klimatizace group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Kanál studeného vzduchu (Part #64220818857).
- Which models use the hardware listed in this Vedení vzduchu?
- The hardware and components featured in the Vedení vzduchu are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Kanál studeného vzduchu (64220818857) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vedení vzduchu assembly?
- Each item in the Vedení vzduchu corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Kanál studeného vzduchu by locating its position on the schematic, which then links to the official BMW part number 64220818857 for the Topení a klimatizace section.
