Topné těleso/montážní díly for BMW MINI R50 Cooper (2000)

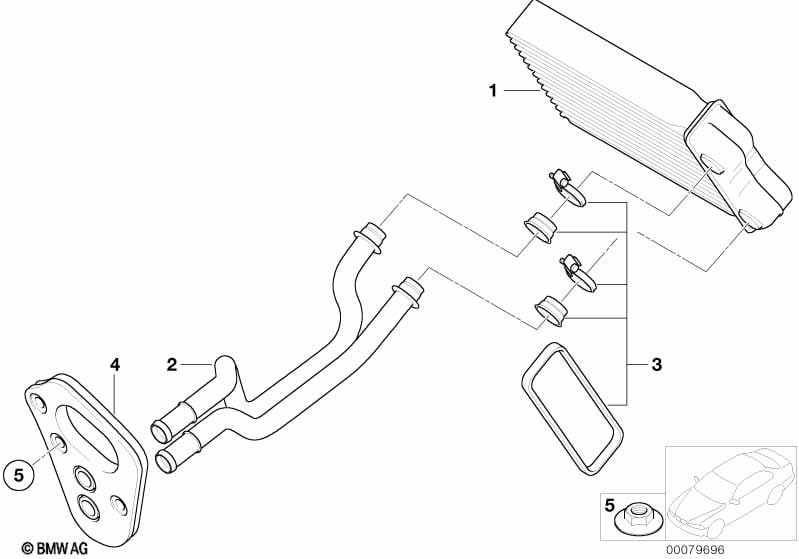

This Topné těleso/montážní díly technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Topné těleso | 1 | 64111497527 | $111.43 | Shop at ECS Tuning | |||||
| 02 | Dvojitá trubka hliník | 1 | 08/2001 | 64211497531 | $33.75 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Sada upevňovací díly | 1 | 64116910914 | $21.30 | Shop at ECS Tuning | |||||
| 04 | Průchodka vodní trubka | 1 | 08/2001 | 64111504275 | $19.78 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Klimatizace nebo Automatická klimatizace |
S530A=Ano S534A=Ano |
|||||||||
| 04 | Průchodka vodní trubka | 1 | 08/2001 | 64111504276 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Šestihranná matice s podložkou | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Topné těleso/montážní díly?
- This technical diagram illustrates the Topné těleso/montážní díly within the Topení a klimatizace group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Topné těleso (Part #64111497527).
- Which models use the hardware listed in this Topné těleso/montážní díly?
- The hardware and components featured in the Topné těleso/montážní díly are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Topné těleso (64111497527) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Topné těleso/montážní díly assembly?
- Each item in the Topné těleso/montážní díly corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Topné těleso by locating its position on the schematic, which then links to the official BMW part number 64111497527 for the Topení a klimatizace section.
