Vodní hadice nezávislé topení for BMW 3 Series E91 318i (2008)

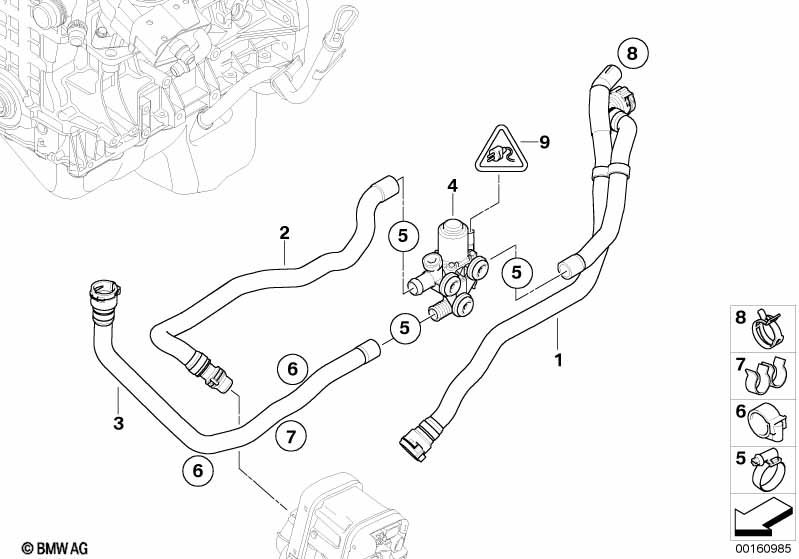

This Vodní hadice nezávislé topení technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Nezávislé topení |
S536A=Ano |
||||||||
| 01 | Hadice topné těleso-přepínací ventil | 1 | 64219111761 | Shop at ECS Tuning | ||||||
| 02 | Hadice přepínací ventil-nezávislé topení | 1 | 64219111762 | Shop at ECS Tuning | ||||||
| 03 | Hadice chod motoru vpřed-přepín. ventil | 1 | 64219111760 | Shop at ECS Tuning | ||||||
| 04 | Changeover valve | 1 | 64126951815 | $150.56 | Shop at ECS Tuning | |||||
| 05 | hadicová spona | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Držák hadice | 2 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 07 | Držák hadice | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 08 | Spona pružicího pásu | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 318i Vodní hadice nezávislé topení?
- This technical diagram illustrates the Vodní hadice nezávislé topení within the Topení a klimatizace group for the 3 Series E91 318i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Hadice topné těleso-přepínací ventil (Part #64219111761).
- Which models use the hardware listed in this Vodní hadice nezávislé topení?
- The hardware and components featured in the Vodní hadice nezávislé topení are specific to the 3 Series E91 318i produced during 2008. These technical specifications ensure that parts like the Hadice topné těleso-přepínací ventil (64219111761) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vodní hadice nezávislé topení assembly?
- Each item in the Vodní hadice nezávislé topení corresponds to the numbered list below the illustration. For the 3 Series E91 318i, you can identify the Hadice topné těleso-přepínací ventil by locating its position on the schematic, which then links to the official BMW part number 64219111761 for the Topení a klimatizace section.
