Kompresor klimatizace/montážní díly for BMW 5 Series E60 LCI 535xi (2009)

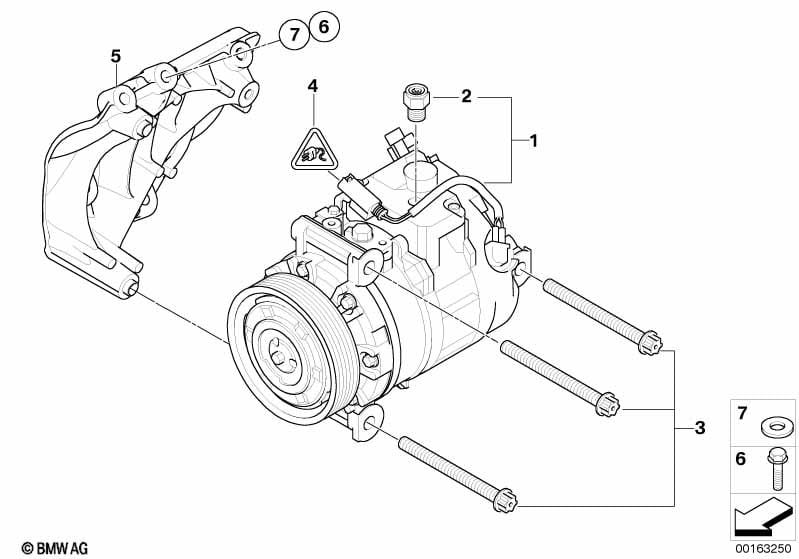

This Kompresor klimatizace/montážní díly technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 535xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kompresor klimatizace | 1 | 64529195721 | $1209.38 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Šestihranný šroub s podložkou | M8X85-U1 | 3 | 07119905402 | $1.91 | Shop at ECS Tuning | ||||
| 02 | Přetlakový ventil | 1 | 64526910463 | $57.10 | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub s podložkou | M8X90-U1 | 3 | 11/2007 | 07119905392 | $1.53 | Shop at ECS Tuning | |||
| 05 | Držák kompresor klimatizace | 1 | 64557558854 | $49.92 | Shop at ECS Tuning | |||||
| 06 | Šestihranný šroub s přírubou | M8X40-8.8-ZNS3 | 3 | 07119905067 | $0.80 | Shop at ECS Tuning | ||||
| 07 | Podložka | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
