Sací ventilátor a montážní díly for BMW 3 Series E36 318i (1998)

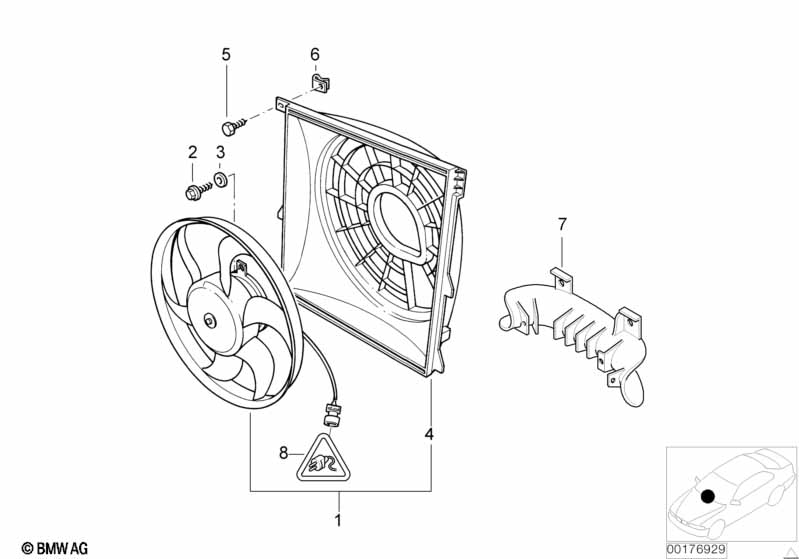

This Sací ventilátor a montážní díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sací ventilátor | 1 | 64508372039 | $366.18 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub | M5X14 | 3 | 07119904337 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Podložka | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Sací rám | 1 | 64548363741 | $72.05 | Shop at ECS Tuning | |||||
| 05 | Šestihranný šroub na plech | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Matice na plech | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Držák větrací kanál | 1 | 64548369127 | $12.85 | Shop at ECS Tuning | |||||
| 08 | Skříň konektoru | 3 POL. | X | 61131378410 | $1.65 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Kruhová zásuvka 2.5 vodotěsná | 1,0-2,5 MM² | 1 | 61130007442 | $5.75 | Shop at ECS Tuning | ||||
