Hadice chlazení for BMW 4 Series G82 M4 Coupé M4 (2024)

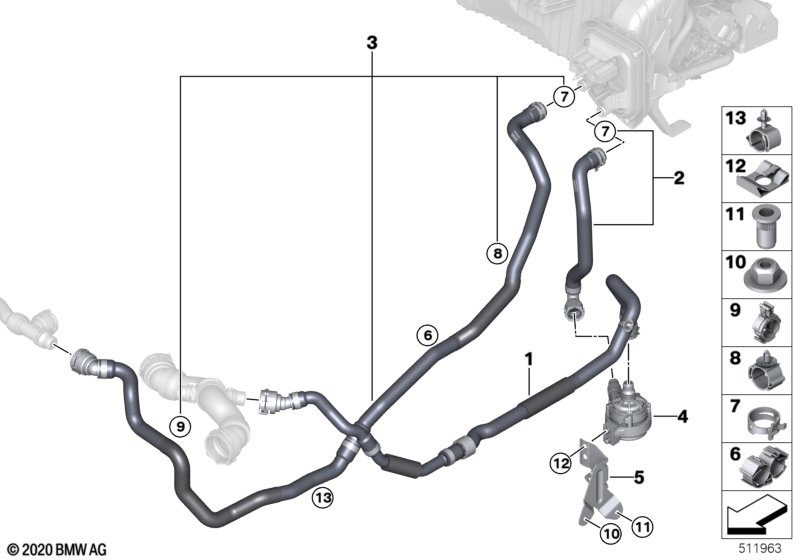

This Hadice chlazení technical drawing provides a detailed breakdown of the assembly for the 4 Series G82 M4 Coupé M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Nezávislé topení |
S536A=Ne |
||||||||
| 01 | Hadice chlazení přívod 1 | 1 | 64218088927 | Shop at ECS Tuning | ||||||
| 02 | Hadice chlazení přívod 2 | 1 | 64218088928 | Shop at ECS Tuning | ||||||
| 03 | Hadice chlazení vratná větev | 1 | 64218088929 | Shop at ECS Tuning | ||||||
| 04 | Přídavné chladicí čerpadlo | LIN | 1 | 07/2021 | 64218840614 | Shop at ECS Tuning | ||||
| 05 | Držák přídavné chladicí čerpadlo | 1 | 64218088930 | Shop at ECS Tuning | ||||||
| 06 | Držák hadice dvojitý | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 07 | Spona pružicího pásu | D=25MM | 2 | 64213405930 | Shop at ECS Tuning | |||||
| 08 | Držák hadice | D=23MM | 1 | 17127619358 | Shop at ECS Tuning | |||||
| 09 | Držák hadice | 1 | 17127599703 | Shop at ECS Tuning | ||||||
| 10 | Šestihranná matice samojisticí | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 11 | Matice slepého nýtu plochá hlava | M6 | 2 | 07147207000 | Shop at ECS Tuning | |||||
| 12 | Pojistná podložka | B8 | 2 | 07129904492 | Shop at ECS Tuning | |||||
| 13 | Držák hadice | 1 | 64216827207 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G82 M4 Coupé M4 Hadice chlazení?
- This technical diagram illustrates the Hadice chlazení within the Topení a klimatizace group for the 4 Series G82 M4 Coupé M4 produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Hadice chlazení přívod 1 (Part #64218088927).
- Which models use the hardware listed in this Hadice chlazení?
- The hardware and components featured in the Hadice chlazení are specific to the 4 Series G82 M4 Coupé M4 produced during 2024. These technical specifications ensure that parts like the Hadice chlazení přívod 1 (64218088927) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hadice chlazení assembly?
- Each item in the Hadice chlazení corresponds to the numbered list below the illustration. For the 4 Series G82 M4 Coupé M4, you can identify the Hadice chlazení přívod 1 by locating its position on the schematic, which then links to the official BMW part number 64218088927 for the Topení a klimatizace section.
