Vodní hadice-čerpadlo-ventil IHKA High for BMW 6 Series E63 LCI 650i (2010)

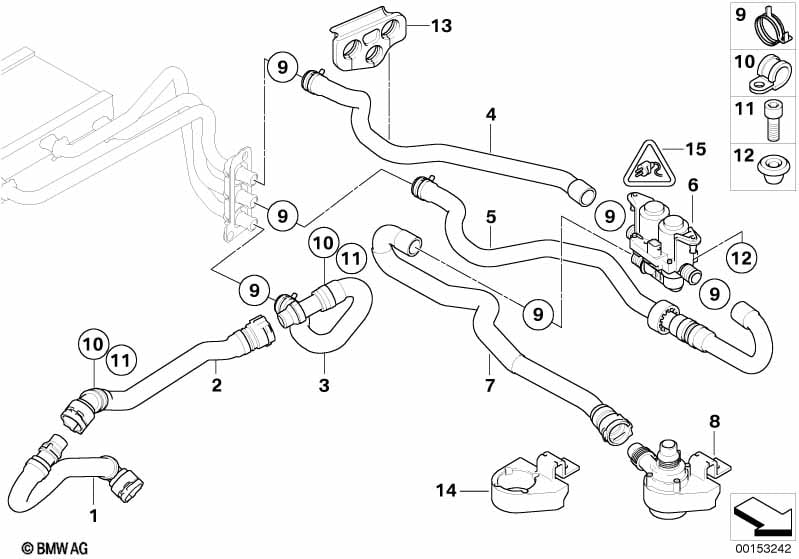

This Vodní hadice-čerpadlo-ventil IHKA High technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hadice topné těleso-zpětný chod motoru | 1 | 64216921428 | $21.89 | Shop at ECS Tuning | |||||
| 02 | Hadice topné těleso-zpětný chod motoru | 1 | 64216912710 | $21.89 | Shop at ECS Tuning | |||||
| 03 | Hadice topné těleso-zpětný chod motoru | 1 | 64216916090 | $13.85 | Shop at ECS Tuning | |||||
| 04 | Hadice vodní ventil-topné těleso | 1 | 64216910757 | $14.84 | Shop at ECS Tuning | |||||
| 05 | Hadice vodní ventil-topné těleso | 1 | 64216910758 | $22.93 | Shop at ECS Tuning | |||||
| 06 | Vodní ventil | 1 | 64116906652 | $124.52 | Shop at ECS Tuning | |||||
| 07 | Hadice příd.vodní čerp.-vodní ventil | 1 | 64216911000 | $24.54 | Shop at ECS Tuning | |||||
| 08 | Přídavné vodní čerpadlo | 1 | 64116988960 | $163.38 | Shop at ECS Tuning | |||||
| 09 | hadicová spona | D=27MM | 6 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 10 | Trubková objímka | 2 | 64216924725 | $1.98 | Shop at ECS Tuning | |||||
| 11 | Šestihranná matice | 2 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 12 | Průchodka | 2 | 64116915444 | $1.63 | Shop at ECS Tuning | |||||
| 13 | Průchodka | 1 | 64216915171 | $7.25 | Shop at ECS Tuning | |||||
| 14 | Upevňovací spona | 1 | 64116988961 | $40.43 | Shop at ECS Tuning | |||||
| 15 | Opravná sada kryt pouzdra | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA s kabelem | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Zdířkový kontakt MQS ELA s kabelem | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
