Chladicí potrubí for BMW 5 Series G30 LCI 520dX (2023)

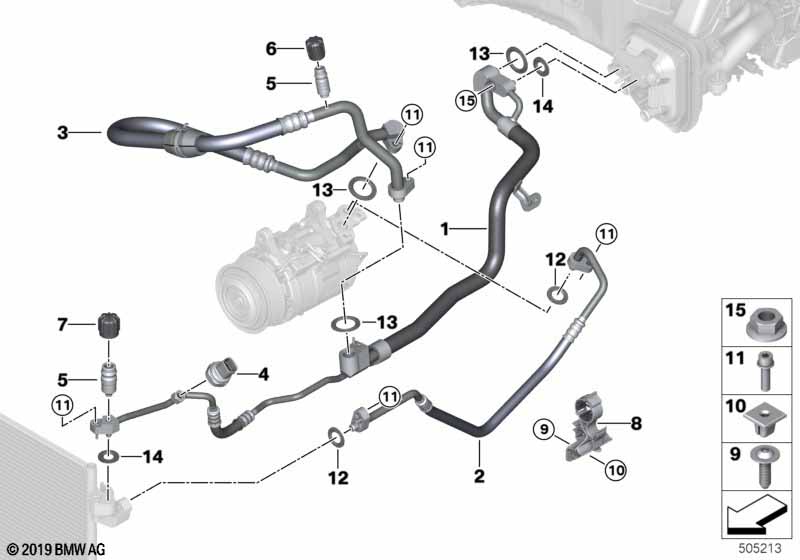

This Chladicí potrubí technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Chladicí prostředek R1234yf |
S8R9A=Ano |
|||||||||
| 01 | Chladicí potrubí dvojitá trubka | R1234YF | 1 | 64539860584 | Shop at ECS Tuning | |||||
| Pro vozidla s Chladicí prostředek R1234yf |
S8R9A=Ne |
|||||||||
| 01 | Chladicí potrubí dvojitá trubka | R134A | 1 | 64539860583 | Shop at ECS Tuning | |||||
| 02 | Tlakové vedení kompresor-kondenzátor | 1 | 64509892594 | Shop at ECS Tuning | ||||||
| Pro vozidla s Chladicí prostředek R1234yf |
S8R9A=Ano |
|||||||||
| 03 | Sací potrubí výparník-kompresor | R1234YF | 1 | 64509875454 | Shop at ECS Tuning | |||||
| Pro vozidla s Chladicí prostředek R1234yf |
S8R9A=Ne |
|||||||||
| 03 | Sací potrubí výparník-kompresor | R134A | 1 | 64509875455 | Shop at ECS Tuning | |||||
| 04 | Snímač tlaku | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 05 | Vložka ventilu | R134A/R1234YF | 2 | 64536922944 | $3.52 | Shop at ECS Tuning | ||||
| Pro vozidla s Chladicí prostředek R1234yf |
S8R9A=Ano |
|||||||||
| 06 | Uzavírací víčko sací potrubí | R1234YF | 1 | 07149287978 | Shop at ECS Tuning | |||||
| Pro vozidla s Chladicí prostředek R1234yf |
S8R9A=Ne |
|||||||||
| 06 | Uzavírací víčko sací potrubí | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| Pro vozidla s Chladicí prostředek R1234yf |
S8R9A=Ano |
|||||||||
| 07 | Uzavírací víčko tlakové vedení | R1234YF | 1 | 07149287979 | Shop at ECS Tuning | |||||
| Pro vozidla s Chladicí prostředek R1234yf |
S8R9A=Ne |
|||||||||
| 07 | Uzavírací víčko tlakové vedení | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 08 | Kombinovaný držák | 1 | 64539303491 | Shop at ECS Tuning | ||||||
| 09 | Šroub s čočkovitou hlavou | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Rozpěrná matice | 1 | 07147348512 | Shop at ECS Tuning | ||||||
| 11 | Isa-šroub | M8X30-U1-8.8 | 5 | 07129904835 | $2.29 | Shop at ECS Tuning | ||||
| 12 | Těsnicí kroužek | D=11MM | 2 | 64539284018 | Shop at ECS Tuning | |||||
| 13 | Těsnicí kroužek | D=17MM | 3 | 64539284019 | Shop at ECS Tuning | |||||
| 14 | Těsnicí kroužek | D=8MM | 2 | 64539284020 | Shop at ECS Tuning | |||||
| 15 | Šestihranná matice | M6-10-ZNNIV SI | 1 | 07129907467 | Shop at ECS Tuning | |||||
