Jednotlivé díly Stereo System for BMW 3 Series E21 320i (1979)

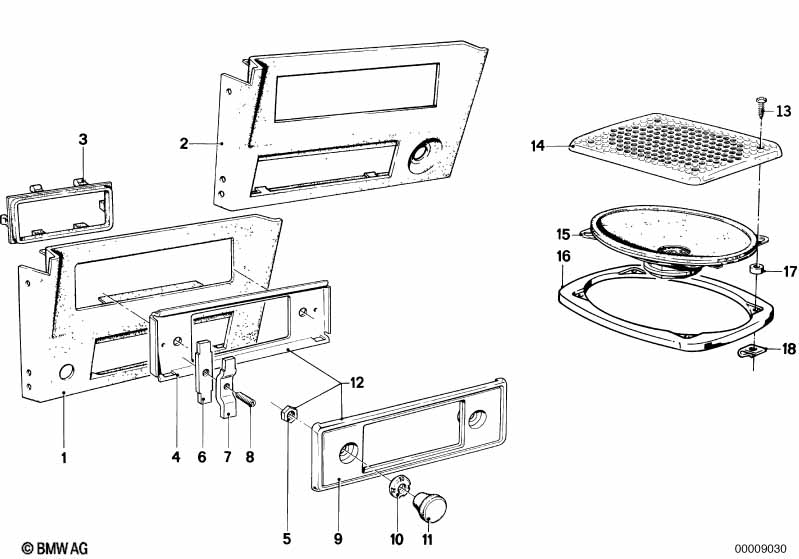

This Jednotlivé díly Stereo System technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clona | STEREO | 1 | 09/1979 | 65111360557 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Clona | 1 | 65111360009 | $2.46 | Shop at ECS Tuning | |||||
| 04 | Držák | 1 | 65111363445 | $4.61 | Shop at ECS Tuning | |||||
| 05 | Matice | 2 | 65111363446 | $0.70 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Uchycení | 2 | 65111363448 | $0.63 | Shop at ECS Tuning | |||||
| 07 | Uchycení | 2 | 65111363708 | $10.71 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Závitový kolík | M6X12 | 2 | 07119905947 | $0.35 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Clona | 1 | 65111367881 | $4.63 | Shop at ECS Tuning | |||||
| 10 | Matice | 2 | 65111362420 | $0.63 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Otočný knoflík | 2 | 65111369117 | $1.89 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Rádio montážní-doplňková sada | STEREO | 1 | 65119055933 | $7.03 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Zápustný šroub na plech s čočkovou hl. | ST4,2X19 | 8 | 07119902468 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Zápustný šroub na plech s čočkovou hl. | ST4,2X32 | 8 | 07119902475 | $0.09 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Zápustný šroub na plech s čočkovou hl. | ST4,2X16 | 8 | 07119902497 | $0.13 | Shop at ECS Tuning | ||||
| 15 | Reproduktor | 8 OHM | 4 | 09/1981 | 65121369119 | UKONČENO | Shop at ECS Tuning | |||
| 15 | Reproduktor | 4-OHM/8/20W | 4 | 09/1981 | 65121375109 | $25.86 | Shop at ECS Tuning | |||
| 15 | Reproduktor | 8 OHM/8/20W | 4 | 09/1981 | 65121375110 | $46.73 | UKONČENO | Shop at ECS Tuning | ||
| 15 | Reproduktor | 4-OHM/4/6W | 4 | 65121357435 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Reproduktor | 4-OHM | 4 | 65121360021 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Reproduktor | INTERNE NUMMER | 4 | 65129057143 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Reproduktor | 4-OHM/8/20W | 4 | 65121375109 | $25.86 | Shop at ECS Tuning | ||||
| 16 | Distanční vložka | ANTHRAZIT | 2 | 65121369884 | $4.63 | UKONČENO | Shop at ECS Tuning | |||
| 17 | Vymezovací podložka | 5,5MM | 8 | 65111374608 | $0.20 | UKONČENO | Shop at ECS Tuning | |||
| 18 | Matice na plech | ST4,2-2ZNS | 8 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 18 | Matice na plech | B4,2 | 8 | 65111360120 | $0.23 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Jednotlivé díly Stereo System?
- This technical diagram illustrates the Jednotlivé díly Stereo System within the Audio, navigace, elektronické systémy group for the 3 Series E21 320i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Clona (Part #65111360557).
- Which models use the hardware listed in this Jednotlivé díly Stereo System?
- The hardware and components featured in the Jednotlivé díly Stereo System are specific to the 3 Series E21 320i produced during 1979. These technical specifications ensure that parts like the Clona (65111360557) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Jednotlivé díly Stereo System assembly?
- Each item in the Jednotlivé díly Stereo System corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Clona by locating its position on the schematic, which then links to the official BMW part number 65111360557 for the Audio, navigace, elektronické systémy section.
