Jednotlivé díly Hi-Fi System for BMW 8 Series E31 840i (1996)

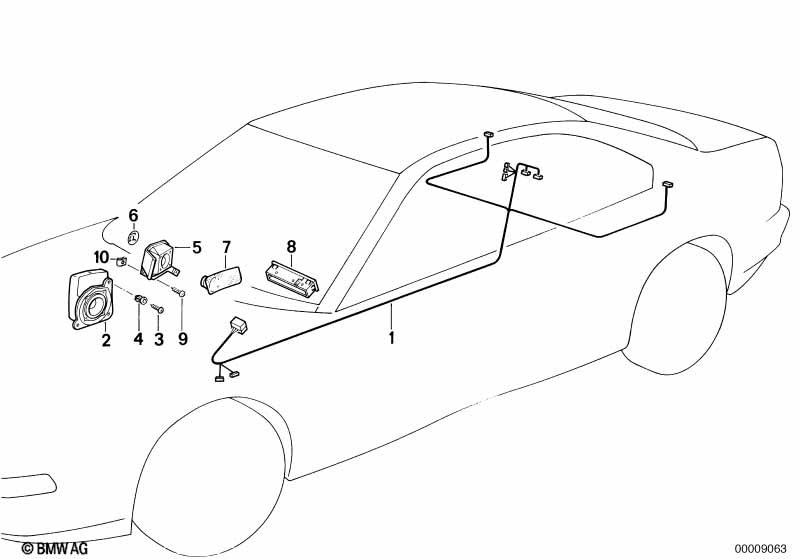

This Jednotlivé díly Hi-Fi System technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Audiokabelový svazek Hi-Fi | 17-POLIG | 1 | 09/1993 | 61128367223 | $200.88 | UKONČENO | Shop at ECS Tuning | ||
| vhodné jen pro rádio Bavaria C Professional |
||||||||||
| 01 | Audiokabelový svazek Hi-Fi | 17-POLIG | 1 | 09/1993 | 61128367224 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Reproduktor levý | 4-OHM/25/40W | 1 | 65131383391 | $96.55 | Shop at ECS Tuning | ||||
| 02 | Reproduktor pravý | 4-OHM/25/40W | 1 | 65131383392 | $96.55 | Shop at ECS Tuning | ||||
| Pro vozidla s Sada handsfree |
=Ano |
|||||||||
| 02 | Reproduktor levý | 1 | 65138354275 | $79.73 | Shop at ECS Tuning | |||||
| 02 | Reproduktor pravý | 1 | 65138354276 | $79.73 | Shop at ECS Tuning | |||||
| 03 | Šestihranný šroub na plech | ST4,8X19-C-Z2 | 6 | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Rozpěrná matice | ST 4.8 SCHWARZ | 6 | 65131379744 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Reproduktor levý | 4-OHM/10/15W | 1 | 65131383343 | $77.40 | Shop at ECS Tuning | ||||
| 05 | Reproduktor pravý | 4-OHM/10/15W | 1 | 65131383344 | $77.40 | Shop at ECS Tuning | ||||
| 06 | Matice na plech | 5MM | 1 | 51418108117 | $0.23 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Reproduktor levý | SCHWARZ | 1 | 09/1993 | 65138361161 | $64.25 | Shop at ECS Tuning | |||
| 07 | Reproduktor pravý | SCHWARZ | 1 | 09/1993 | 65138361162 | $64.25 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Reproduktor levý | SILBERGRAU | 1 | 09/1993 | 65138361163 | $64.25 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Reproduktor pravý | SILBERGRAU | 1 | 09/1993 | 65138361164 | $64.25 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Reproduktor levý | ULTRAMARIN | 1 | 09/1993 | 65138361165 | $65.29 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Reproduktor pravý | ULTRAMARIN | 1 | 09/1993 | 65138361166 | $65.29 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Reproduktor levý | PERGAMENT | 1 | 09/1993 | 65138361167 | $64.25 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Reproduktor pravý | PERGAMENT | 1 | 09/1993 | 65138361168 | $65.29 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Reproduktor levý | BRASIL | 1 | 09/1993 | 65138361169 | $65.29 | UKONČENO | Shop at ECS Tuning | ||
| 07 | Reproduktor pravý | BRASIL | 1 | 09/1993 | 65138361170 | $65.29 | UKONČENO | Shop at ECS Tuning | ||
| 08 | Rám | 1 | 65121375737 | $13.10 | Shop at ECS Tuning | |||||
| 09 | Samořezný šroub s čočkovou hlavou | ST4,8X16 | 6 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Matice na plech | ST 4,8-4-ZNS3 | 6 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
