Jednotlivé díly Stereo System for BMW 7 Series E32 740iL

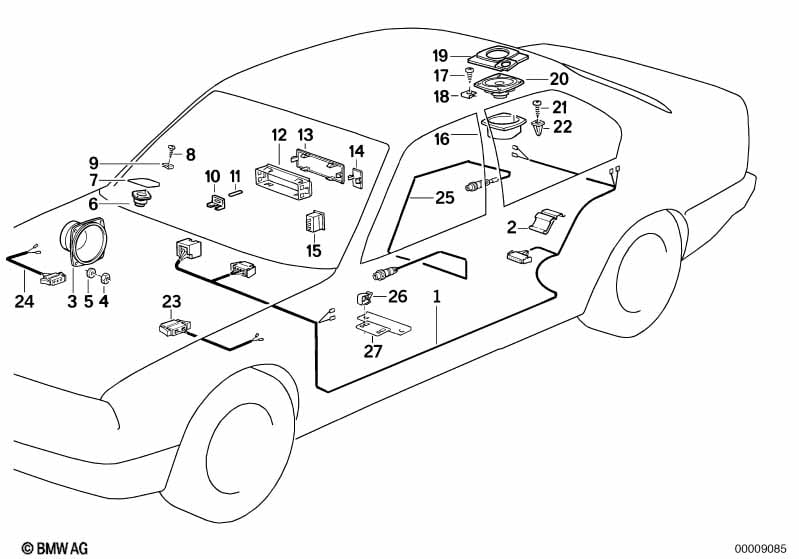

This Jednotlivé díly Stereo System technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabelový svazek reproduktoru 2kanál. | 1 | 65121388371 | UKONČENO | Shop at ECS Tuning | |||||
| 01 | Kabelový svazek reproduktoru 4kanál. | 1 | 65121388372 | $151.78 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Audiokabelový svazek Stereo | 17-POLIG | 1 | 09/1990 | 61128350721 | $161.82 | UKONČENO | Shop at ECS Tuning | ||
| vhodné jen pro rádio Bavaria C Professional |
||||||||||
| 01 | Audiokabelový svazek Stereo | 17-POLIG | 1 | 09/1990 | 61128350725 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Reproduktor | 2 | 65131386541 | Shop at ECS Tuning | ||||||
| Pro vozidla s Sada handsfree |
=Ano |
|||||||||
| 03 | Reproduktor | 2 | 65138370935 | $43.06 | Shop at ECS Tuning | |||||
| 04 | Šestihranná matice | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 05 | Pružná podložka | B4 | 8 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Reproduktor | 8 OHM/25/40W | 2 | 65131374469 | $37.22 | Shop at ECS Tuning | ||||
| 07 | Rouno vložka pod lištu reproduktoru | STEREO | 2 | 65131388628 | $0.58 | Shop at ECS Tuning | ||||
| 08 | Samořezný šroub s čočkovou hlavou | ST4,2X13 | 4 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 09 | C-Svorka matice | 4 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 10 | Držák rádia zadní | 1 | 65111374474 | $2.45 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Kolík | 1 | 65111379686 | $1.97 | Shop at ECS Tuning | |||||
| 12 | Rám | 1 | 65121388703 | $12.98 | UKONČENO | Shop at ECS Tuning | ||||
| 13 | Lišta rádia | 1 | 64111368515 | $25.40 | Shop at ECS Tuning | |||||
| 14 | Slepý uzávěr | 1 | 64111368498 | $7.03 | Shop at ECS Tuning | |||||
| 15 | Prolínací regulátor s válc. konektorem | 1 | 65121379048 | $39.55 | Shop at ECS Tuning | |||||
| 16 | Skořepina | 2 | 65131374499 | $3.08 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Samořezný šroub s čočkovou hlavou | ST4,2X13-Z2 | 8 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 18 | Matice na plech | ST4,2-3-ZNS3 | 8 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Lišta reproduktoru zadní levá | 1 | 65131378775 | $4.65 | Shop at ECS Tuning | |||||
| 19 | Lišta reproduktoru zadní pravá | 1 | 65131378776 | $4.65 | Shop at ECS Tuning | |||||
| 20 | Reproduktor | 2 | 65131386541 | Shop at ECS Tuning | ||||||
| 21 | Samořezný šroub s čočkovou hlavou | ST4,2X13-Z1 | 6 | 07119907943 | $0.14 | UKONČENO | Shop at ECS Tuning | |||
| 21 | Šroub na plech | 4,2X13 | 6 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Rozpěrná matice | ST 4.8 SCHWARZ | 6 | 65131379744 | $0.18 | Shop at ECS Tuning | ||||
| 23 | Spojovací kabel prostor pro nohy levý | 1 | 61121379725 | $20.20 | UKONČENO | Shop at ECS Tuning | ||||
| 24 | Spojovací kabel prostor pro nohy pravý | 1 | 61121379726 | $20.20 | UKONČENO | Shop at ECS Tuning | ||||
| 25 | Spojovací kabel kazeta-přijímač | 1 | 65121382006 | $75.89 | UKONČENO | Shop at ECS Tuning | ||||
| 26 | Kabelové držáky | 1 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
| 27 | Držák zástrčka kazetový kabel | 1 | 65121382292 | $3.18 | UKONČENO | Shop at ECS Tuning | ||||
| 28 | Kabelové držáky | 1 | 65141384879 | $0.28 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
