Jednotlivé díly CD-6 měnič for BMW 8 Series E31 840i (1996)

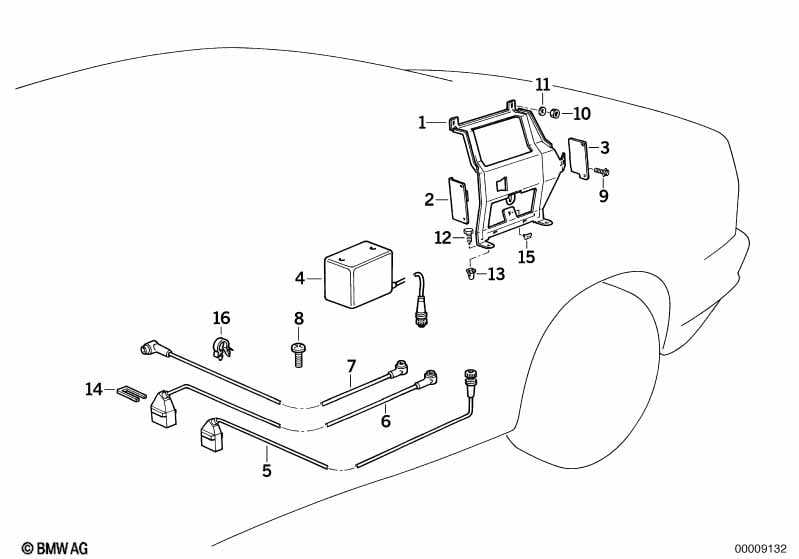

This Jednotlivé díly CD-6 měnič technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Držák CD-měnič | 1 | 65121392898 | $39.91 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Držák CD-měnič přední | 1 | 65128354466 | $13.22 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Držák CD-měnič zadní | 1 | 65128354467 | $10.10 | UKONČENO | Shop at ECS Tuning | ||||
| vhodné jen pro rádio Bavaria C Professional RDS |
||||||||||
| 04 | Rozhraní CD-měnič | CD-6 SELEKTION | 1 | 65128355803 | $505.55 | UKONČENO | Shop at ECS Tuning | |||
| 04 | Rozhraní CD-měnič | CD-6 SELEKTION | 1 | 65128359507 | UKONČENO | Shop at ECS Tuning | ||||
| vhodné jen pro rádio Bavaria C Business RDS rádio BMW Business RDS rádio BMW Professional RDS |
||||||||||
| 05 | Spojovací kabel CD-měnič | 1 | 65121392837 | $106.45 | Shop at ECS Tuning | |||||
| vhodné jen pro rádio Bavaria C Professional RDS |
||||||||||
| 06 | Spojovací kabel CD-měnič | 3560MM | 1 | 65128354110 | Shop at ECS Tuning | |||||
| 07 | Spojovací kabel CD-měnič | 2250MM | 1 | 65128354145 | Shop at ECS Tuning | |||||
| 08 | Šroub s čočkovitou hlavou | M4X8 | 6 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 09 | Šestihranný šroub | M6X12 | 1 | 07119913013 | $1.22 | Shop at ECS Tuning | ||||
| 10 | Šestihranná matice | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Podložka | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 12 | Hi-Lo šroub | 4,9X19 | 2 | 64501380494 | $0.88 | Shop at ECS Tuning | ||||
| 13 | Rozpěrná matice | ST 6.3 | 2 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 14 | Svorka pro skříň konektoru | 1 | 61131390431 | $1.90 | Shop at ECS Tuning | |||||
| 15 | Držák zástrčka černá | 1 | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 16 | Kabelové držáky | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 840i Jednotlivé díly CD-6 měnič?
- This technical diagram illustrates the Jednotlivé díly CD-6 měnič within the Audio, navigace, elektronické systémy group for the 8 Series E31 840i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Držák CD-měnič (Part #65121392898).
- Which models use the hardware listed in this Jednotlivé díly CD-6 měnič?
- The hardware and components featured in the Jednotlivé díly CD-6 měnič are specific to the 8 Series E31 840i produced during 1996. These technical specifications ensure that parts like the Držák CD-měnič (65121392898) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Jednotlivé díly CD-6 měnič assembly?
- Each item in the Jednotlivé díly CD-6 měnič corresponds to the numbered list below the illustration. For the 8 Series E31 840i, you can identify the Držák CD-měnič by locating its position on the schematic, which then links to the official BMW part number 65121392898 for the Audio, navigace, elektronické systémy section.
