Jednotl. díly dveře zadní Stereo System for BMW 7 Series E38 740i (2001)

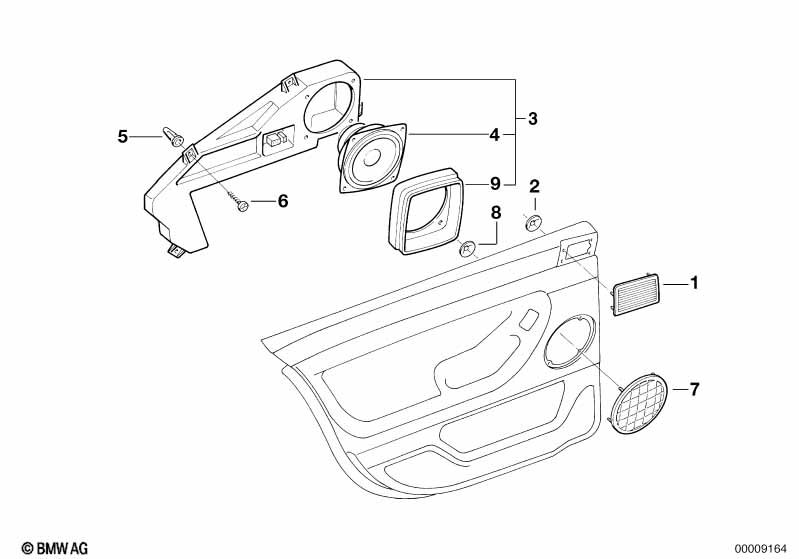

This Jednotl. díly dveře zadní Stereo System technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lišta reproduktoru zadní levá | MARINEBLAU | 1 | 51428183293 | $8.82 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Lišta reproduktoru zadní pravá | MARINEBLAU | 1 | 51428183294 | $8.82 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Lišta reproduktoru zadní levá | DUNKELGRUEN | 1 | 51428183295 | $8.82 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Lišta reproduktoru zadní pravá | DUNKELGRUEN | 1 | 51428183296 | $8.82 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Lišta reproduktoru zadní levá | SCHWARZ | 1 | 51428190879 | $8.70 | Shop at ECS Tuning | ||||
| 01 | Lišta reproduktoru zadní pravá | SCHWARZ | 1 | 51428190880 | $8.70 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Lišta reproduktoru zadní levá | DUNKELBEIGE | 1 | 51428190881 | $8.70 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Lišta reproduktoru zadní pravá | DUNKELBEIGE | 1 | 51428190882 | $8.82 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Pružná matice | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 03 | Box reproduktoru dveře zadní levý | STEREO / HIFI | 1 | 65138352431 | $104.80 | Shop at ECS Tuning | ||||
| 03 | Box reproduktoru dveře zadní pravý | STEREO / HIFI | 1 | 65138352432 | $104.80 | Shop at ECS Tuning | ||||
| 04 | Reproduktor | STEREO / HIFI | 2 | 65138352686 | $32.48 | Shop at ECS Tuning | ||||
| 05 | Rozpěrná matice | ST 4.8 WEISS | 8 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Samořezný šroub s čočkovou hlavou | ST4,8X16 | 8 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Lišta reproduktoru | SCHWARZ | 2 | 51418178241 | $16.05 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Lišta reproduktoru | MARINEBLAU | 2 | 51418178242 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Lišta reproduktoru | SANDBEIGE | 2 | 51418178999 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Lišta reproduktoru | DUNKELGRUEN | 2 | 51418179000 | $14.13 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Lišta reproduktoru | GRAU | 2 | 51418190825 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Lišta reproduktoru | LAVENDELGRAU | 2 | 51418190826 | $14.13 | Shop at ECS Tuning | ||||
| 07 | Lišta reproduktoru | PASTELLGRUEN | 2 | 51418190827 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Chrome Line/SA345 |
=Ano |
|||||||||
| 07 | Lišta reproduktoru | SCHWARZ | 2 | 51418216716 | $26.75 | Shop at ECS Tuning | ||||
| 07 | Lišta reproduktoru | GRAU | 2 | 51418216717 | $13.38 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Lišta reproduktoru | MARINEBLAU | 2 | 51418216718 | $13.38 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Lišta reproduktoru | SANDBEIGE | 2 | 51418216719 | $13.38 | Shop at ECS Tuning | ||||
| 07 | Lišta reproduktoru | LAVENDELGRAU | 2 | 51418216720 | $14.17 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Lišta reproduktoru | DUNKELGRUEN | 2 | 51418216721 | $13.38 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Lišta reproduktoru | PASTELLGRUEN | 2 | 51418216722 | $14.17 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Lišta reproduktoru | PEARLBEIGE | 2 | 09/1998 | 51418247497 | $21.98 | UKONČENO | Shop at ECS Tuning | ||
| 08 | Pružná matice | 8 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 09 | Zvukový izolační kroužek pro reproduktor | 2 | 65138369083 | $9.28 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
