Palubní obrazovka-rádio for BMW 3 Series E46 325xi (2005)

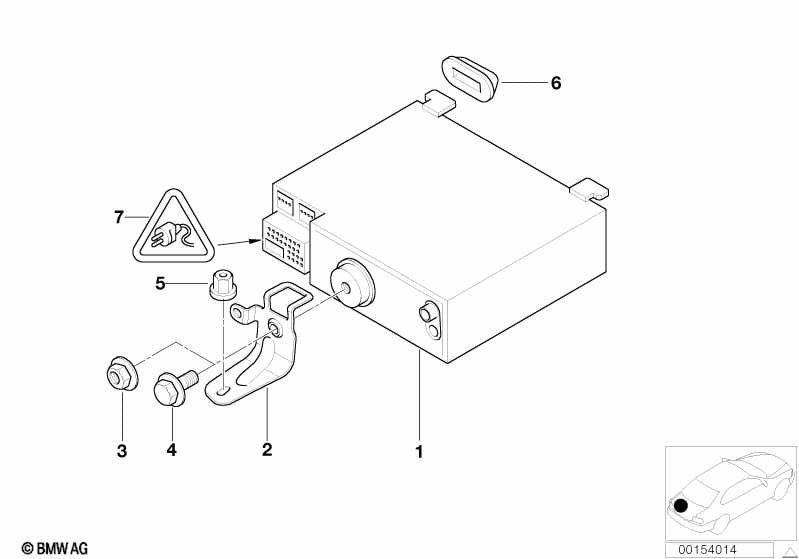

This Palubní obrazovka-rádio technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rádio BMW Business | TMC | 1 | 65128385457 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | RP REMAN autorádio BMW Business | TMC | 1 | 65129185185 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Výměna rádio BMW Professional | TMC | 1 | 09/2001 | 09/2005 | 65126972667 | $722.37 | UKONČENO | Shop at ECS Tuning | |
| 01 | RP REMAN autorádio BMW Professional | TMC | 1 | 09/2001 | 65126976964 | $798.66 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Rádio BMW Professional | TMC | 1 | 09/2001 | 65126976963 | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení Japonsko |
L807A=Ano |
|||||||||
| 01 | Výměna rádio BMW Business | 1 | 09/2001 | 03/2006 | 65126976962 | $451.28 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Rádio BMW Business | 1 | 09/2001 | 65126988275 | $638.62 | Shop at ECS Tuning | ||||
| 01 | RP REMAN autorádio BMW Business | 1 | 09/2001 | 65126988276 | $522.71 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Rádio-ovládání Oceánie |
S825A=Ano |
|||||||||
| 01 | Výměna rádio BMW Business | 1 | 09/2001 | 03/2006 | 65126976962 | $451.28 | UKONČENO | Shop at ECS Tuning | ||
| 01 | Rádio BMW Business | 1 | 09/2001 | 65126988275 | $638.62 | Shop at ECS Tuning | ||||
| 01 | RP REMAN autorádio BMW Business | 1 | 09/2001 | 65126988276 | $522.71 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Držák palubní obrazovka-rádio | 1 | 65128379774 | $2.73 | Shop at ECS Tuning | |||||
| 03 | Šestihranná matice s podložkou | M5 | 1 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M5X14 | 1 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Uzavřená matice | M5 | 1 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Pryžová průchodka | 1 | 61131370818 | $2.93 | Shop at ECS Tuning | |||||
| 07 | Skříň konektoru | 16 POL. | 1 | 09/2001 | 61138384580 | $3.78 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS s kabelem | 0,2- 0,5 QMM | 8 | 09/2001 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Zdířkový kontakt MQS s kabelem | 0,5-0,75 MM² AG | 8 | 09/2001 | 61130056960 | Shop at ECS Tuning | ||||
| -- | Opravná sada kryt pouzdra | 12 POL. | 1 | 09/2001 | 61132471240 | Shop at ECS Tuning | ||||
| -- | Pouzdro zásuvky | 8 POL. | 2 | 09/2001 | 61136905788 | $1.52 | Shop at ECS Tuning | |||
| -- | Zdířkový kontakt ELO- Power 2,8x 0,63 | 0,5-1,0 MM² | 24 | 09/2001 | 61138364832 | $0.35 | Shop at ECS Tuning | |||
| -- | Pojistka | 1 | 09/2001 | 61138384567 | $0.92 | Shop at ECS Tuning | ||||
| -- | Odnímatelný kryt | 12 POL. | 1 | 09/2001 | 61138387206 | $2.07 | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
