Jedn.díly stran.obl. HiFi/Top-HiFi zadní for BMW 3 Series E46 316Ci (2003)

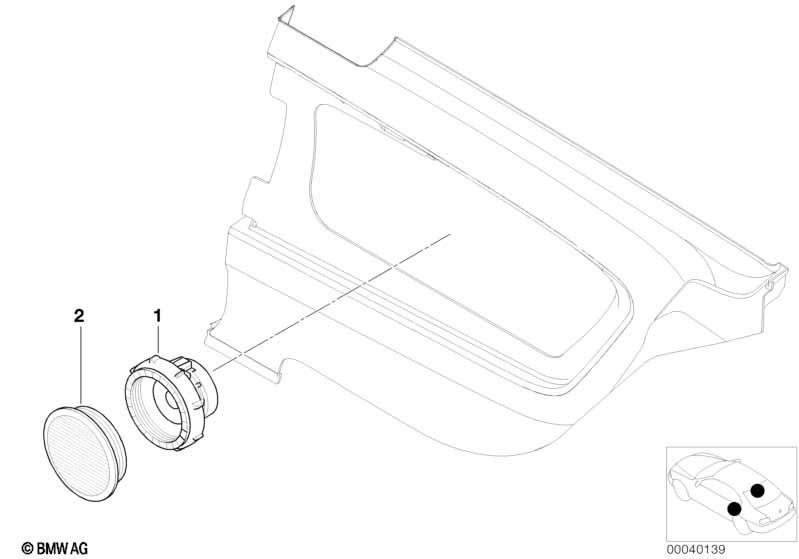

This Jedn.díly stran.obl. HiFi/Top-HiFi zadní technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Kabeláž reproduktorů Je obsažen v kabel.svazku reproduktorů |
|||||||||
| 01 | Středovysokotónový reproduktor Hifi | 2 | 65138368239 | $45.28 | Shop at ECS Tuning | |||||
| 01 | Středotónový reproduktor Top-Hifi systém | 2 | 65138368245 | $82.87 | Shop at ECS Tuning | |||||
| Pro vozidla s Boční airbag pro cestující vzadu |
S261A=Ne |
|||||||||
| 02 | Lišta reproduktoru | SCHWARZ | 2 | 65138376198 | $7.73 | Shop at ECS Tuning | ||||
| 02 | Lišta reproduktoru | PERLGRAU | 2 | 65136911463 | $7.48 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Lišta reproduktoru | GRAU | 2 | 65138376199 | $7.73 | Shop at ECS Tuning | ||||
| 02 | Lišta reproduktoru | MARINEBLAU | 2 | 65138376200 | $7.48 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Lišta reproduktoru | HELLBEIGE | 2 | 65138376201 | $7.73 | Shop at ECS Tuning | ||||
| 02 | Lišta reproduktoru | TANINROT | 2 | 65138376202 | $7.73 | Shop at ECS Tuning | ||||
| 02 | Lišta reproduktoru | MINT | 2 | 65138376203 | $7.48 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Lišta reproduktoru | LIGHTGELB | 2 | 65138376204 | $7.73 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Lišta reproduktoru | PEACH | 2 | 65138376208 | $7.42 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Lišta reproduktoru | BROMBEER | 2 | 09/2001 | 65106915182 | $7.48 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Lišta reproduktoru | NATURBRAUN | 2 | 09/2001 | 65106915183 | $7.73 | UKONČENO | Shop at ECS Tuning | ||
| 02 | Lišta reproduktoru | TRAUMROT | 2 | 09/2001 | 65106915184 | $7.73 | UKONČENO | Shop at ECS Tuning | ||
Notes
- Ukončeno = Díl se již nevyrábí.
