Rádio Wave for BMW MINI R50 Cooper (2000)

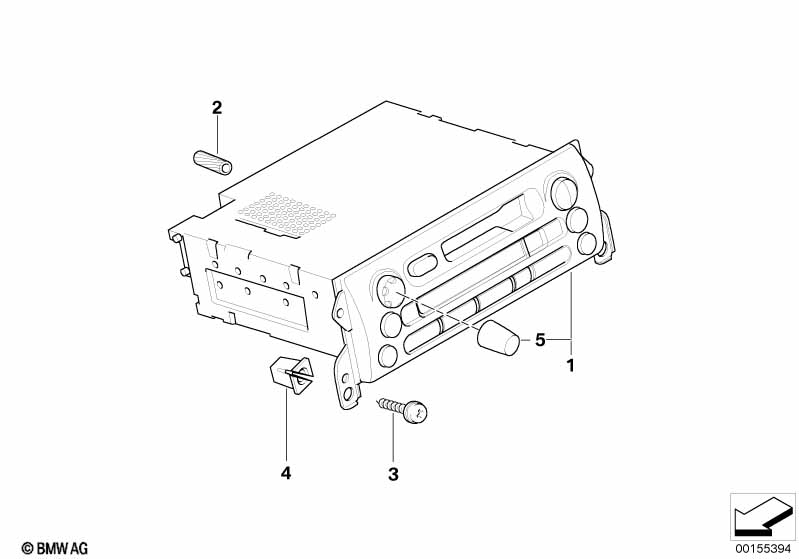

This Rádio Wave technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rádio Wave | 1 | 03/2002 | 65126909665 | UKONČENO | Shop at ECS Tuning | ||||
| 01 | Rádio MINI MC | 1 | 03/2002 | 65129149622 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| 01 | Rádio Wave | 1 | 03/2002 | 65126921594 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| 01 | Rádio Wave | 1 | 03/2002 | 65126943420 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| 01 | RP REMAN autorádio MINI MC | 1 | 03/2002 | 65129149641 | UKONČENO | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Vedení anténního adaptéru | 1 | 03/2002 | 61126913955 | $33.05 | Shop at ECS Tuning | ||||
| 02 | Přídržný kolík rádia | 1 | 65106913427 | $1.00 | Shop at ECS Tuning | |||||
| 03 | Samořezný šroub s čočkovou hlavou | ST4,2X19 | 4 | 10/2006 | 51431874616 | $0.39 | Shop at ECS Tuning | |||
| 03 | Šroub s čočkovitou hlavou | K40X20-ZNFE SW | 4 | 07147119149 | $0.49 | Shop at ECS Tuning | ||||
| 04 | Rozpěrná matice | 2 | 46631453058 | $0.75 | Shop at ECS Tuning | |||||
| 05 | Knoflík | 1 | 65129126999 | $9.11 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Rádio Wave?
- This technical diagram illustrates the Rádio Wave within the Audio, navigace, elektronické systémy group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Rádio Wave (Part #65126909665).
- Which models use the hardware listed in this Rádio Wave?
- The hardware and components featured in the Rádio Wave are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Rádio Wave (65126909665) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rádio Wave assembly?
- Each item in the Rádio Wave corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Rádio Wave by locating its position on the schematic, which then links to the official BMW part number 65126909665 for the Audio, navigace, elektronické systémy section.
