Rádio Boost for BMW MINI R50 Cooper (2000)

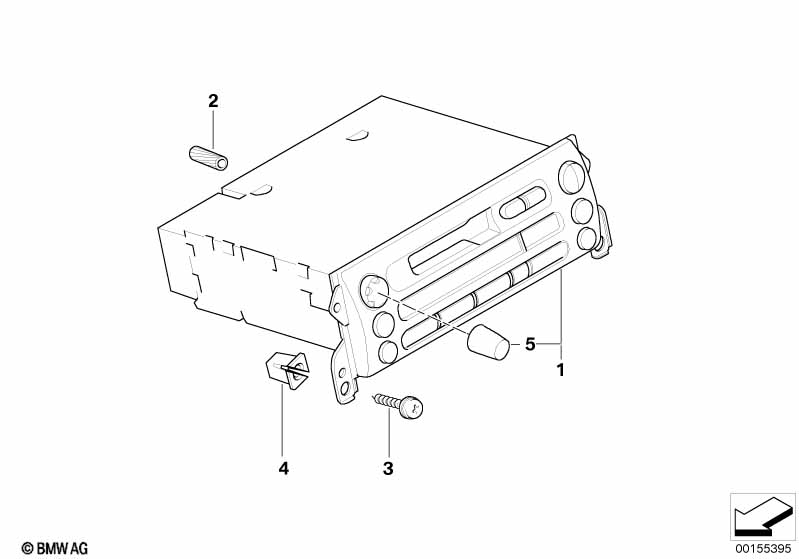

This Rádio Boost technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rádio Boost | 1 | 03/2003 | 65126943421 | $694.92 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Výměna rádio Boost | 1 | 09/2004 | 65126923504 | $543.82 | UKONČENO | Shop at ECS Tuning | |||
| 01 | RP REMAN autorádio Boost | 1 | 09/2006 | 65126943422 | $543.82 | Shop at ECS Tuning | ||||
| 02 | Přídržný kolík rádia | 1 | 65106913427 | $1.00 | Shop at ECS Tuning | |||||
| 03 | Samořezný šroub s čočkovou hlavou | ST4,2X19 | 4 | 10/2006 | 51431874616 | $0.39 | Shop at ECS Tuning | |||
| 03 | Šroub s čočkovitou hlavou | K40X20-ZNFE SW | 4 | 07147119149 | $0.49 | Shop at ECS Tuning | ||||
| 04 | Rozpěrná matice | 2 | 46631453058 | $0.75 | Shop at ECS Tuning | |||||
| 05 | Knoflík | 1 | 65129126999 | $9.11 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Rádio Boost?
- This technical diagram illustrates the Rádio Boost within the Audio, navigace, elektronické systémy group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Rádio Boost (Part #65126943421).
- Which models use the hardware listed in this Rádio Boost?
- The hardware and components featured in the Rádio Boost are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Rádio Boost (65126943421) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rádio Boost assembly?
- Each item in the Rádio Boost corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Rádio Boost by locating its position on the schematic, which then links to the official BMW part number 65126943421 for the Audio, navigace, elektronické systémy section.
