Zesilovač/držák Hi-Fi Syst.Harman Kard. for BMW MINI R50 Cooper (2000)

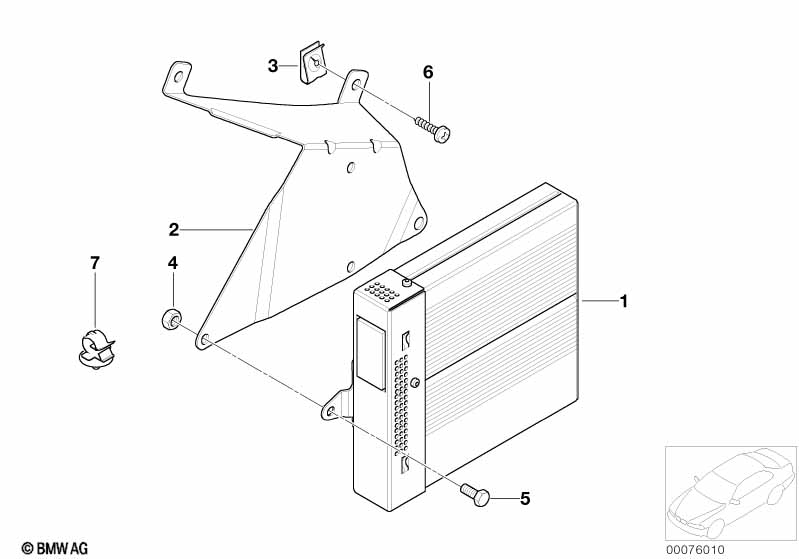

This Zesilovač/držák Hi-Fi Syst.Harman Kard. technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Hi-Fi systém Harman Kardon |
S674A=Ano |
||||||||
| 01 | Zesilovač | 1 | 09/2004 | 65126940205 | $826.87 | UKONČENO | Shop at ECS Tuning | |||
| 01 | Zesilovač | 1 | 65129146708 | $948.47 | Shop at ECS Tuning | |||||
| 02 | Držák zesilovač | 1 | 65121515126 | $27.10 | Shop at ECS Tuning | |||||
| 03 | Matice na plech | ST 4,8-7-ZNS3 | 2 | 07129904226 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice s podložkou | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub s přírubou | M6X12-8.8-ZNS3 | 2 | 07119904125 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub s přírubou | M6X10-8.8-ZNS3 | 1 | 07119904128 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Šroub s čočkovou hlavou s nákružkem | ST4,2X16MM | 2 | 63212754322 | $0.14 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
