Výs.sys. proti krád. s rád.ochr.vni.pro. for BMW MINI R50 Cooper (2000)

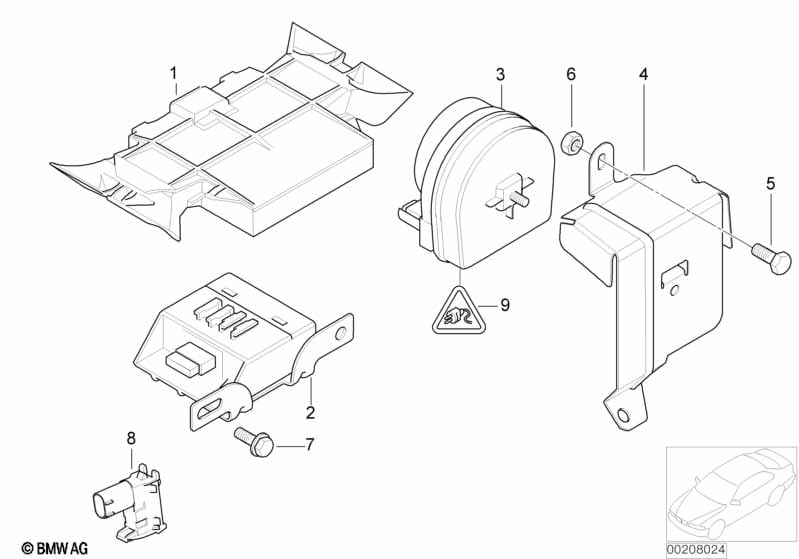

This Výs.sys. proti krád. s rád.ochr.vni.pro. technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Zabezpečovací systém |
S302A=Ano |
||||||||
| 01 | Ultrazvukový modul | 1 | 65756937083 | $143.25 | Shop at ECS Tuning | |||||
| 02 | Čidlo náklonu | III | 1 | 09/2003 | 65756923207 | $114.20 | Shop at ECS Tuning | |||
| 03 | Siréna nouzového proudu | 1 | 09/2003 | 65756914293 | $138.52 | Shop at ECS Tuning | ||||
| 04 | Držák siréna nouzového proudu | 1 | 09/2003 | 65756921918 | $24.27 | UKONČENO | Shop at ECS Tuning | |||
| 05 | Šroub | M6X16 | 2 | 07130782504 | $0.44 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Šestihranná matice | 3 | 03/2007 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 06 | Šestihranná matice | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Spínač přední kapota | 1 | 61311480861 | $14.12 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
