Zesilovač/držák Hi-Fi Syst.Harman Kard. for BMW MINI Cabrio R52 Cooper (2002)

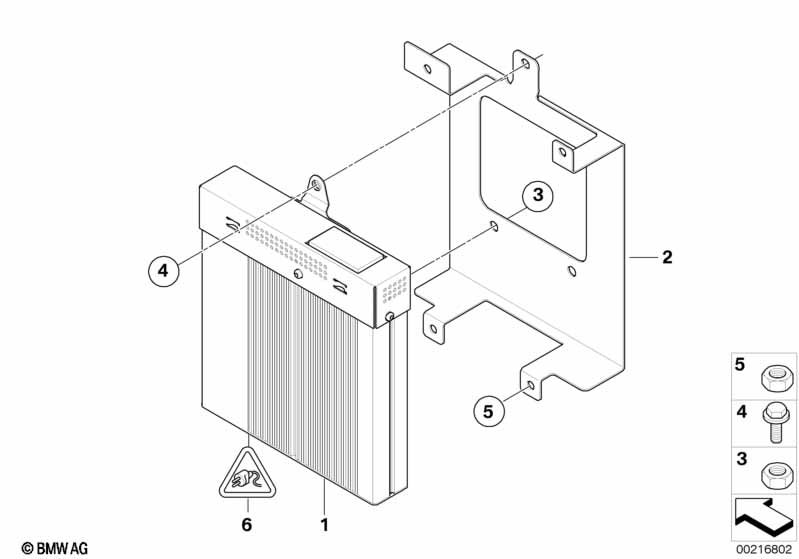

This Zesilovač/držák Hi-Fi Syst.Harman Kard. technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio R52 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zesilovač Hi-Fi systém Harman Kardon | 1 | 65129146709 | $948.47 | Shop at ECS Tuning | |||||
| 02 | Držák zesilovač | 1 | 65126930053 | +core | Shop at ECS Tuning | |||||
| 03 | Šestihranná matice s podložkou | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Šestihranná matice s podložkou | M5 | 4 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 06 | Těleso zdířky černé | 21 POL. | 1 | 61138364882 | $1.30 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Zdířkový kontakt MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
| -- | Univerzální krytka nekódovaná | 42 POL. | 1 | 61138364810 | Shop at ECS Tuning | |||||
| -- | Těleso zdířky šedé | 21 POL. | 1 | 61138364884 | $1.30 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
